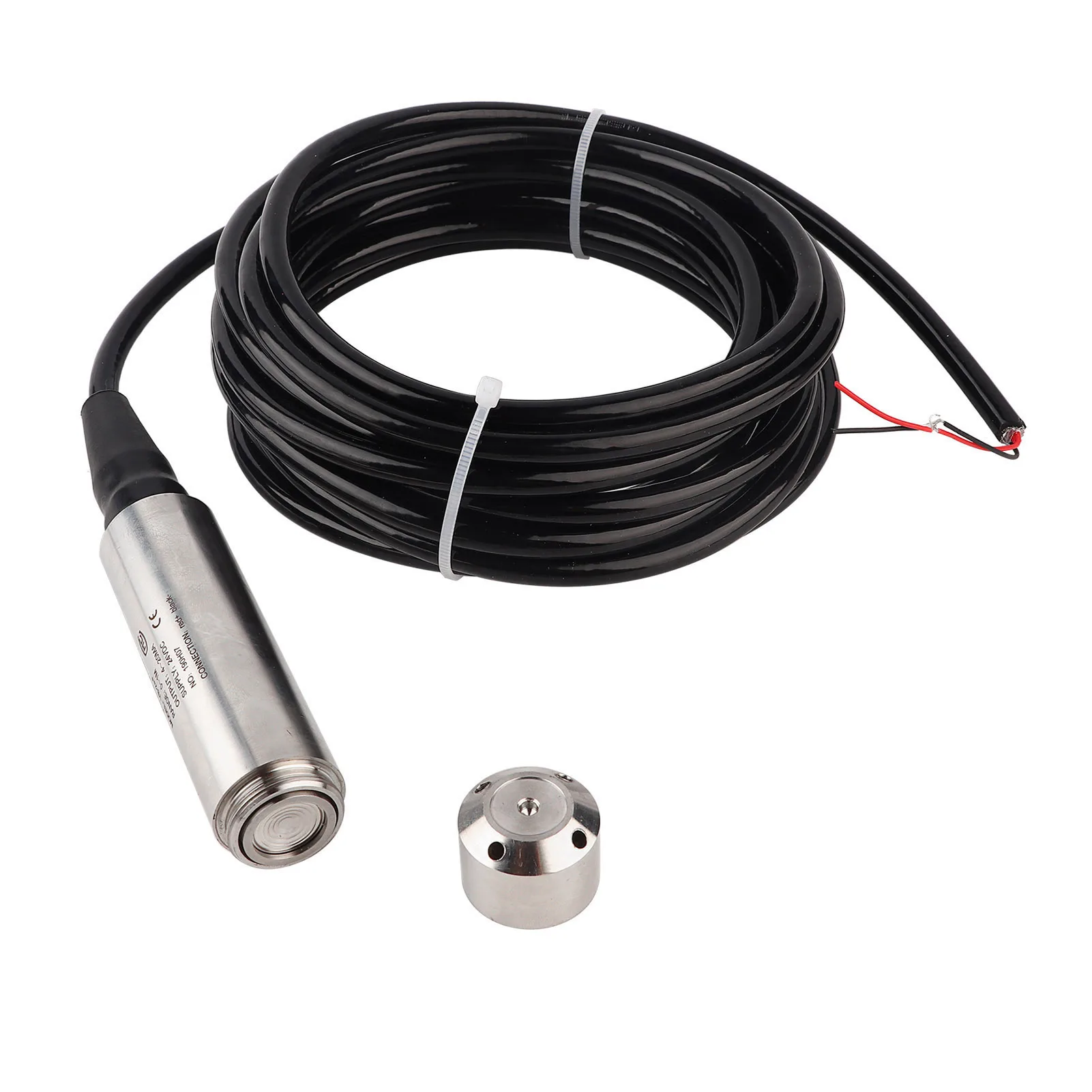

Introducing the YB2JF Liquid Level Transmitter:
🛠️ The YB2JF Liquid Level Transmitter is a cutting-edge device designed for precise monitoring of water levels in various applications. It features a robust 5-meter cable, allowing for flexible installation in different environments.
🔧 Key Features:
- High-Precision Measurement: Utilizing state-of-the-art diffusion silicon technology, this level transmitter ensures accurate monitoring of water levels with a remarkable measurement accuracy of 0.5% FS.
- Stable Signal Output: The transmitter is equipped with a full digital conditioning circuit that produces a reliable 4-20mA output signal, ensuring consistent and stable performance even in fluctuating conditions.
- Exceptional Waterproofing: Designed to withstand harsh environments, the YB2JF boasts an IP68 rating, providing multi-layer waterproof protection that guarantees its safety and longevity in underwater applications.
- Durable Design: Featuring a 45-degree oblique angle probe with an anti-impact design, this transmitter not only prevents damage from external forces but also incorporates a detachable probe to alleviate potential blockages.
- Versatile Operating Conditions: This unit operates efficiently within a considerable temperature range, allowing for medium temperatures from -40°C to 80°C and environmental temperatures from -40°C to 80°C, with thermal compensation up to -10°C to 70°C.
- Robust Construction: Constructed from high-quality 304 stainless steel, the device is designed for reliability and durability, ideal for long-term use in the field.
- Overload Protection: With a notable overload capacity that can withstand impacts of up to 20g between 20-5000Hz, this transmitter is built to handle challenging operational demands.
💥 Specifications:
- Item Type: Liquid Level Transmitter
- Model: YB-2J-F
🔴 - Measured Medium: Water (not suitable for corrosive liquids)
- Cable Length: Approx. 5m / 16.4ft
- Output Signal: 4-20mA
- Power Supply Voltage: 12-32VDC
- Long-Term Stability: ±0.2% FS/year
- Temperature Source Shift: ±0.01% FS/°C
📦 Included in the Package:
1 x Liquid Level Transmitter
Note:
The probe is designed to be unscrewed and removed for maintenance or replacement. Please be aware that the product may vary in type, and we appreciate your understanding regarding this when placing your order.
