FG300 0.001Hz-200KHz Schumann Wave Generator
🛠️ The FG300 is an innovative and highly versatile signal generator designed for a wide range of applications, from electronic research and development to audio testing and educational purposes. This state-of-the-art device provides users with a frequency range of 0.001Hz to 200KHz, delivering exceptional performance and precision across various waveforms.
🔧 Key Features:
- High Precision Technology: Utilizing low-temperature drifted crystal oscillators combined with advanced DDS frequency synthesis, the FG300 boasts impressive frequency stability and an astonishing resolution of 0.001HZ, ensuring unparalleled accuracy, especially at lower frequencies.
- Diverse Waveform Outputs: The FG300 is capable of generating up to 13 different waveforms, including sine, square, triangular, forward and reverse sawtooth, electrocardiogram, half wave, Lorenz, Gaussian, Schinger, exponential rise and fall, along with the distinctive 7.83HZ Schumann wave, effectively catering to varied signal generation needs.
- User-Friendly Interface: Featuring a vibrant 1.8-inch TFT color LCD display paired with a convenient digital keyboard for direct input of frequencies, the FG300 makes operation intuitive, allowing users to easily adjust settings and monitor outputs.
- Smart Features: The device comes equipped with an array of smart functionalities, including timed shutdown, brightness adjustment for both the signal lights and screen backlighting, enhancing user experience and adaptability in different environments.
- Automatic Parameter Storage: Forgetting your last settings is a thing of the past. The FG300 automatically saves all user-defined parameters, negating the need for repetitive input upon startup, thus streamlining workflow.
🪶 Product Overview:
🛠️ The FG300 is not just a tool; it is a comprehensive solution designed to meet the dynamic demands of researchers, educators, technicians, and hobbyists alike. With its portable design, high precision capabilities, and extensive waveform generation options, it plays a pivotal role in various sectors, including R&D, manufacturing testing, maintenance and repair, as well as instructional applications.
Specification Highlights:
- Frequency Range: Sine wave: 0.001Hz-200kHz (with amplitude stability up to 100kHz; further increases may affect amplitude and distortion); Other waveforms: 0.001Hz-20kHz (subject to distortion tolerance).
- Output Amplitude: 2.5V VPP.
- Output Impedance: 330 ohms.
- Power Supply: USB Type-C 5V.
- Dimensions: 127mm x 98mm x 18mm.

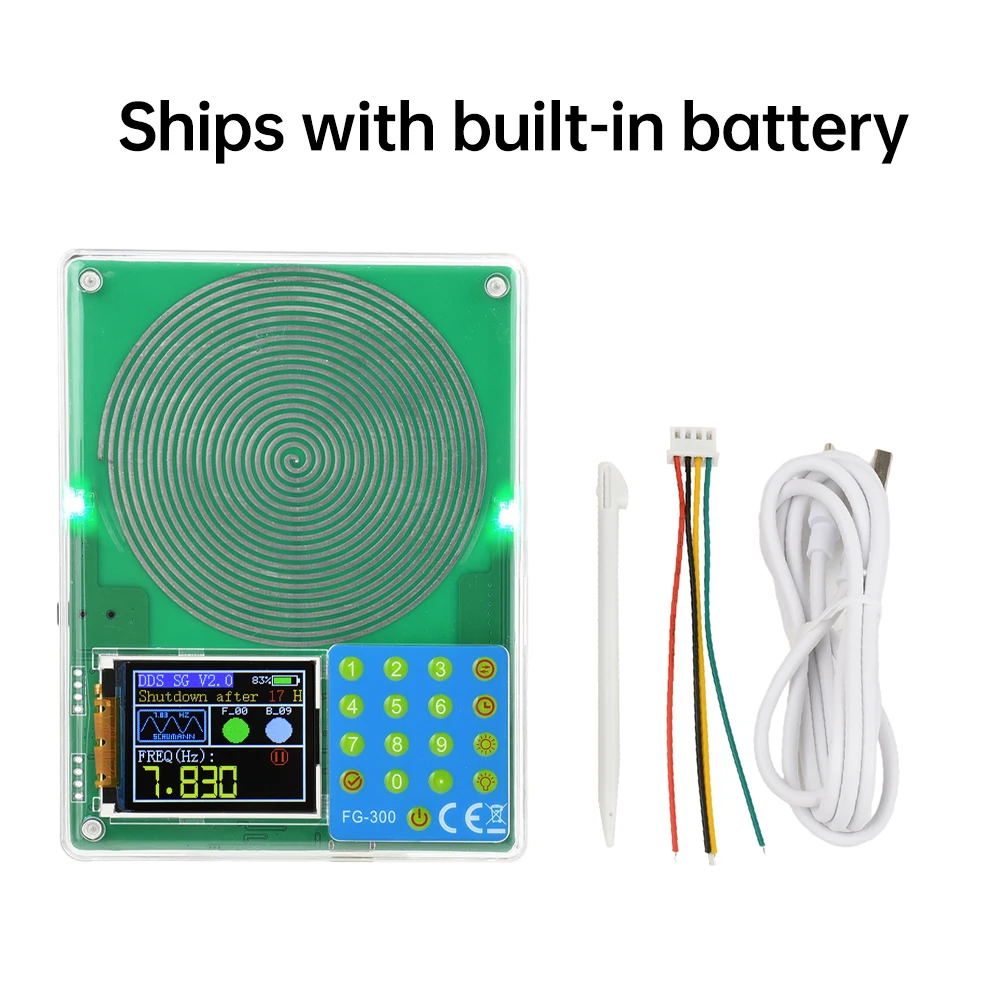

In the Box:
- FG300 Signal Generator (Host) x1
- USB Type-C Power Supply Cable x1
- 4-Pin Signal Output Cable x1
- Stylus x1
🛠️ Experience the next level of waveform generation with the FG300, where precision meets versatility to elevate your projects and experiments.
