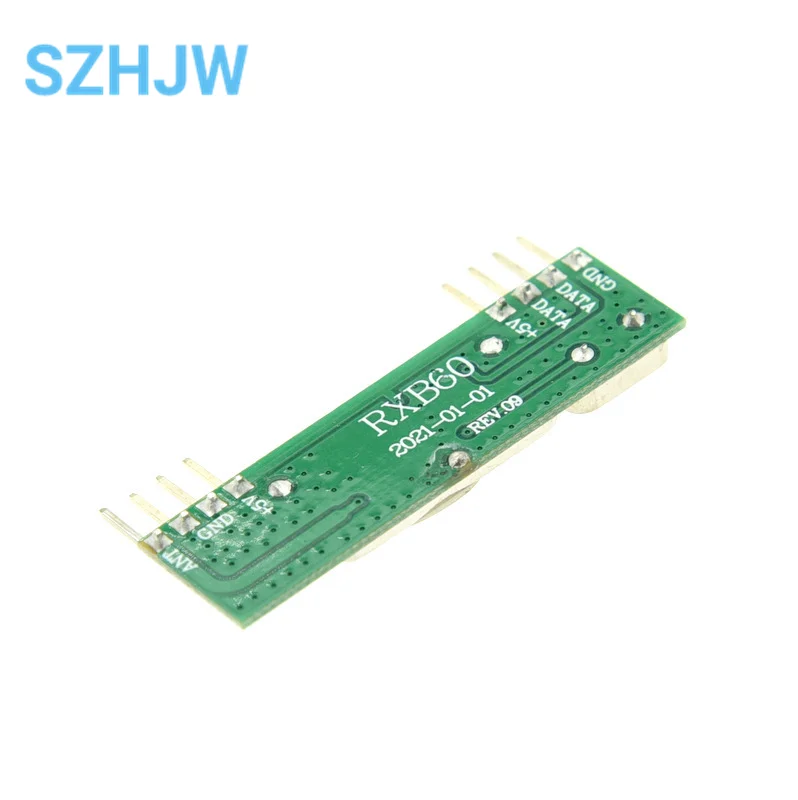

🧩 Introducing the RXB6 RXB60 Wireless Receiver Module: a high-performance superheterodyne receiver that operates seamlessly across multiple frequencies, including 315 MHz, 433.92 MHz, 868 MHz, and 914.5 MHz. This versatile module offers custom frequency options tailored to user specifications, making it suitable for a wide range of applications.
🔧 Key Features:
- Exceptional Sensitivity: With a receiving sensitivity of up to -112dBm, the RXB6 ensures reliable data reception even in challenging environments.
- Wide Operating Voltage: Designed to accept a power supply voltage input range from 3V to 5.5V, the module is adaptable for various power sources.
- Low Power Consumption: The RXB6 boasts low power usage with only 6.0mA at 3.3V for 433.92 MHz applications and 4.8mA at 3.3V for 315 MHz, enabling prolonged operation without frequent battery changes. In power enable mode, it can operate at a mere 50nA.
- Data Transfer Rate: Capable of supporting data transfer rates up to 10kbps through Manchester encoding, ensuring efficient communication for a variety of applications.
- RSSI Output: Equipped with a Received Signal Strength Indicator (RSSI) that provides an analog level output, enabling users to monitor signal strength effortlessly.
- Enhanced Selectivity: This module is designed with superior selectivity and stray radiation suppression, ensuring it meets stringent CE/FCC international certification standards.
- Interference-Free Operation: Thanks to its excellent local oscillator radiation suppression, multiple RXB6 modules can operate concurrently without interference, allowing for single transmission and multiple reception without compromising range.
- Robust Temperature Range: Operational within a temperature range of -40 to 85°C, the RXB6 is engineered to perform reliably even in extreme conditions.
🪶 Application Versatility: The RXB6 RXB60 receiver module is ideal for a myriad of applications, including:
- Car remote control door switches (RKE)
- Remote control door openers
- Wireless security alarms
- Remote control curtain machines
- Wireless industrial controllers
📶 Module Naming Explanation: The designation RXB6-315M indicates that RX represents the receiving capability, B6 signifies the module model, and 315M specifies the operating frequency of 315 MHz.
⚡ Important Note: The drive current of the data output pin of the RXB6 module is minimal. Ensure that when interfacing with a microcontroller, the I/O port should not be connected to pull-up or pull-down resistors; thus, the internal pull-up or pull-down resistor settings of the microcontroller should be disabled to maintain optimal performance.
