📶 433MHz RF Receiver Learning Code Decoder Module is a versatile and reliable device designed for various remote control applications. With its 433MHz wireless frequency and 4-channel output, this module serves as a powerful solution for seamlessly integrating remote control functionalities into a wide array of electronic devices.
🔧 Product Features:
- Working Voltage: DC3.3~5V, allowing for flexible power supply options.
- Low Quiescent Current: ≤5mA, ensuring efficient energy use.
- High Sensitivity: Receive sensitivity of -108dB, enabling effective communication over distances.
- Extended Range: Operates at a receiving distance of over 15 meters.
- Temperature Tolerance: Designed to function in harsh conditions from -25 to 75 degrees Celsius.
- Four Operating Modes: Inching mode, Self-Lock mode, and Interlock mode for versatile control options.
💍 Applications: This module is ideal for a variety of uses, including:
- Wireless Control Systems: Perfect for managing wireless power switches, remote control sockets, and receiver modules.
- Automotive Solutions: Suitable for electric vehicles, motorcycles, and anti-theft systems, facilitating secure door locking and access management.
- Home Security: Integrate with home security systems, allowing control over electric doors, alarms, and surveillance setups.
- Smart Home Integration: Connects effortlessly to smart home products, offering control over curtains, LED lighting, and audio systems.
🔒 Technical Specifications:
- Frequency Band: ±0.2MHz

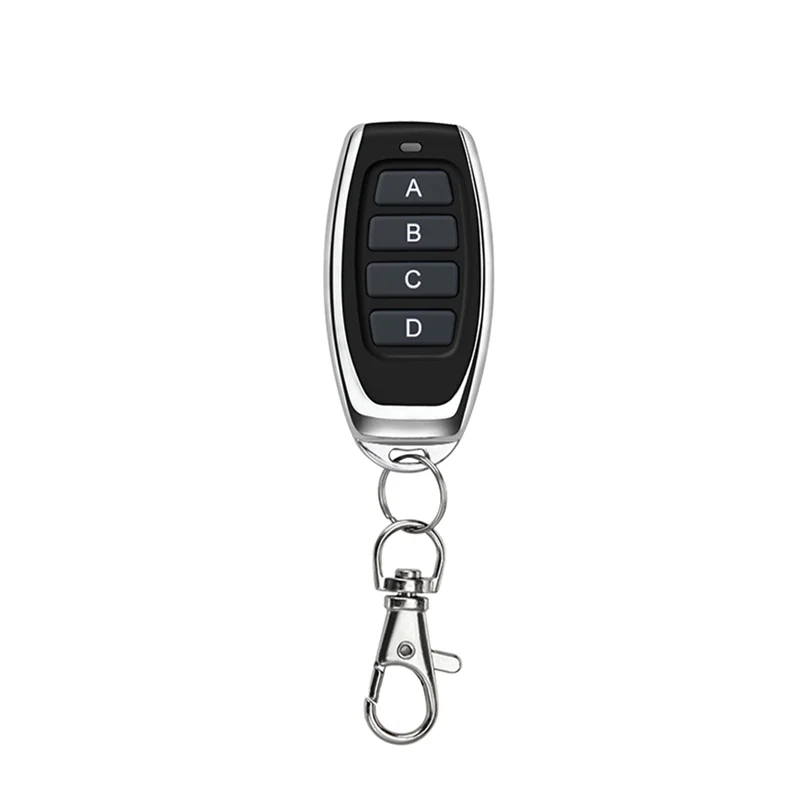

- Output Type: 4-channel CMOS level signal corresponding to buttons A, B, C, D on the remote control.
🔘 Programming Instructions: Easy to program for your specific needs:
- Inching Mode: Press the learn button once, then press the desired button on the remote.
- Self-Lock Mode: Press the learn button twice, followed by a press of the desired remote button.
- Interlocked Mode: Press the learn button three times, then press the button on the remote to set.
🔍 Cleaning Data: Clear old data by pressing the learning button eight times until the LED flashes seven times.
🧩 This 433MHz RF Receiver Learning Code Decoder Module is a robust and multifunctional tool, making it an ideal choice for various remote control applications across different sectors, from security to automotive to smart home technologies.
