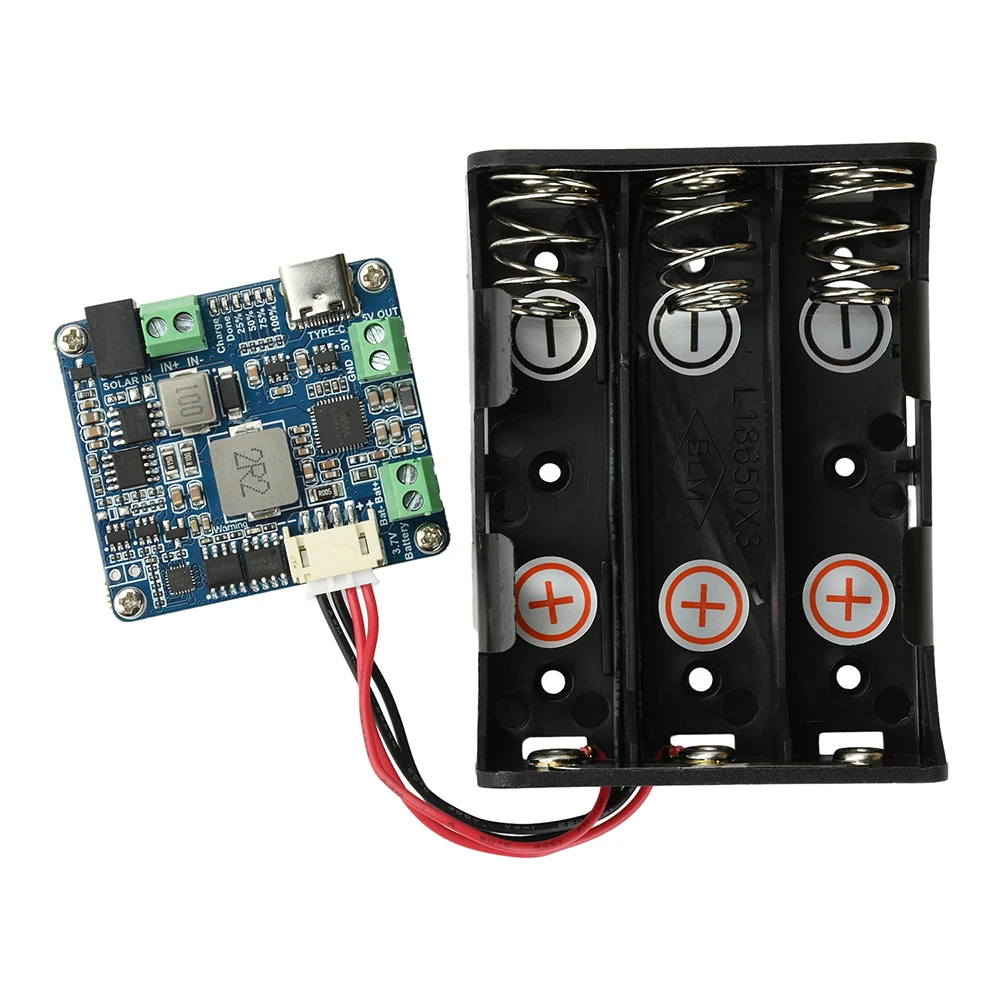

High - Efficiency Solar Power Management MPPT Charger for Fast Charging Applications (With battery box)

🔌 Introducing the Solar Panel Power Management Module with MPPT Charger

🔋 This advanced power management module is designed to optimize solar energy conversion and ensure efficient charging for your devices. With a wide input voltage range of 6-24V, it is perfect for use with various solar panels and offers compatibility with multiple charging options.

🔧 Key Features

• Maximum Power Point Tracking (MPPT): This feature significantly enhances solar conversion efficiency, allowing you to harness more energy from your solar panels.
• Versatile Charging Methods: Supports charging from both solar panels and Type-C power adapters, providing flexibility in how you power your devices.
• Adaptive Input Voltage: Accommodates a range of solar panel voltages from 6-24V and includes reverse polarity protection to safeguard against incorrect connections.
• Status Indicators: Onboard LEDs for simple monitoring of solar panel and battery status, allowing you to keep track of charging progress at a glance.
• Robust Protection Circuits: Integrated safety features prevent overcharging, over-discharging, overheating, and overcurrent situations, ensuring the longevity of your battery and connected devices.

🧩 Product Specifications

🔋 This module efficiently powers 3.7V rechargeable lithium batteries (typically utilizing 3 x 18650 cells, not included) either through solar panels or Type-C interfaces. It provides a stable output of 5V/3A, compatible with several fast charging protocols including PD, QC, FCP, PE, and SFCP. With an impressive solar panel charging efficiency of approximately 78% and USB charging efficiency of around 93%, this module excels in performance.

Operating Parameters

• Solar Panel Input Voltage: 6-24V
• USB Input Voltage: 5V (Type-C port, supports fast charging)
• Charge Cut-off Protection Voltage: 4.2V ±1%
• Over-Discharge Protection Voltage: 3.0V ±1%
• Battery Boost Output Efficiency: Approximately 90%
• Quiescent Current: Maximum of <30mA
• Operating Temperature Range: -40°C to 85°C

⚡ Included in the Package:

• Power Management Module x1
• Battery Case x1 (Optional)

🧩 Designed for solar power generation, low-power IoT applications, and other eco-friendly projects, this power management module is the ideal solution for those seeking to harness renewable energy efficiently and safely.
