Product Overview:

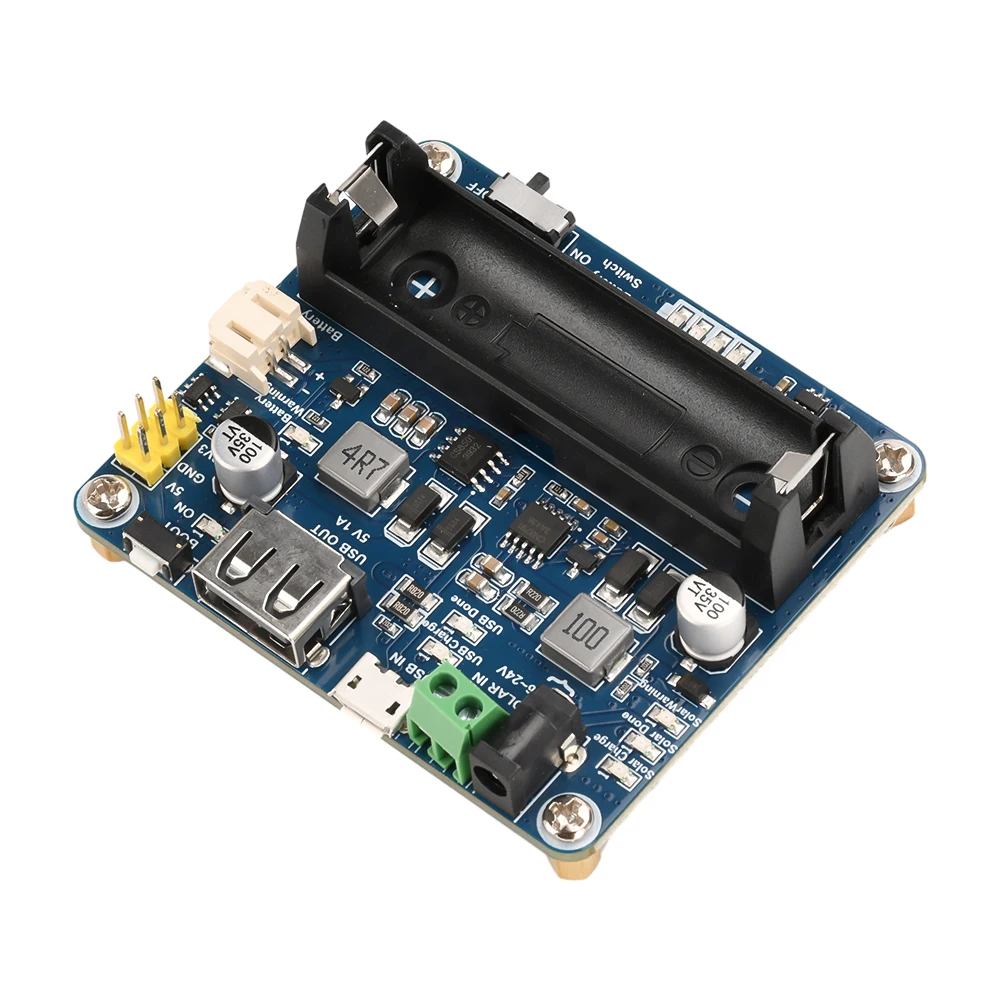

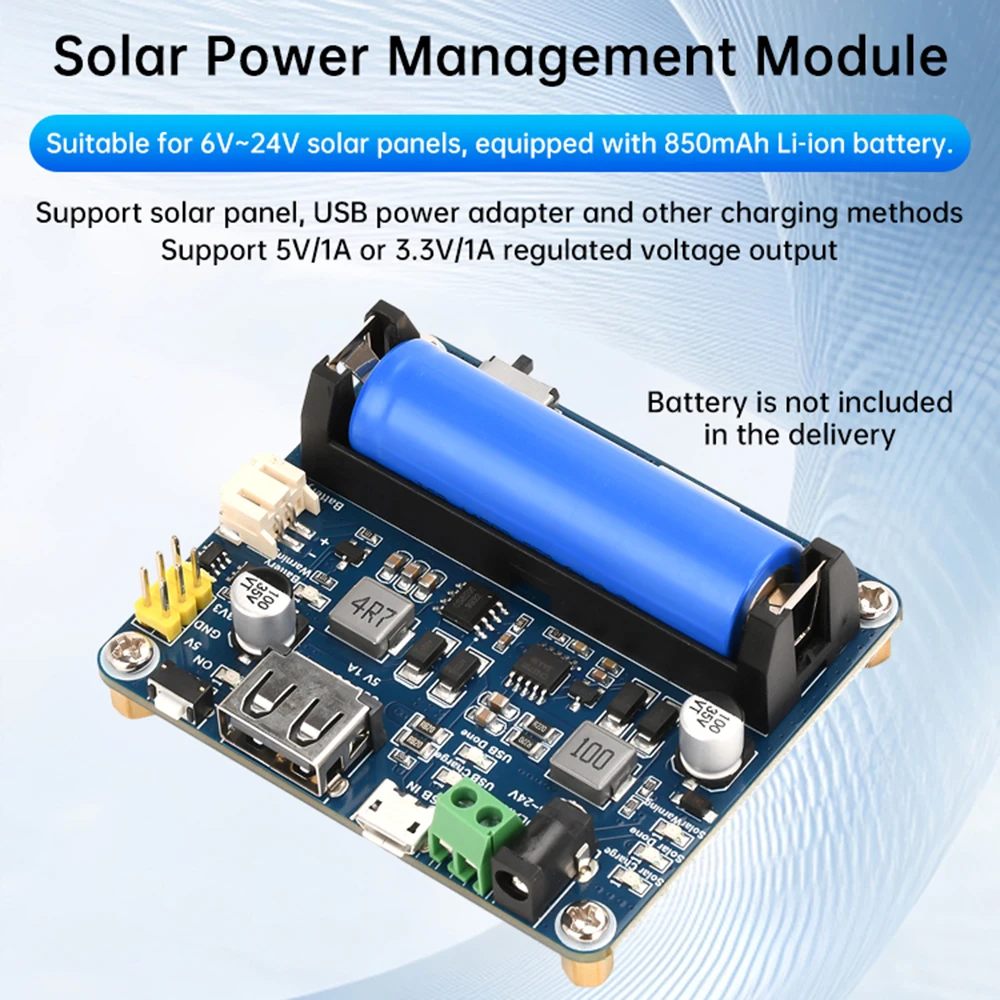

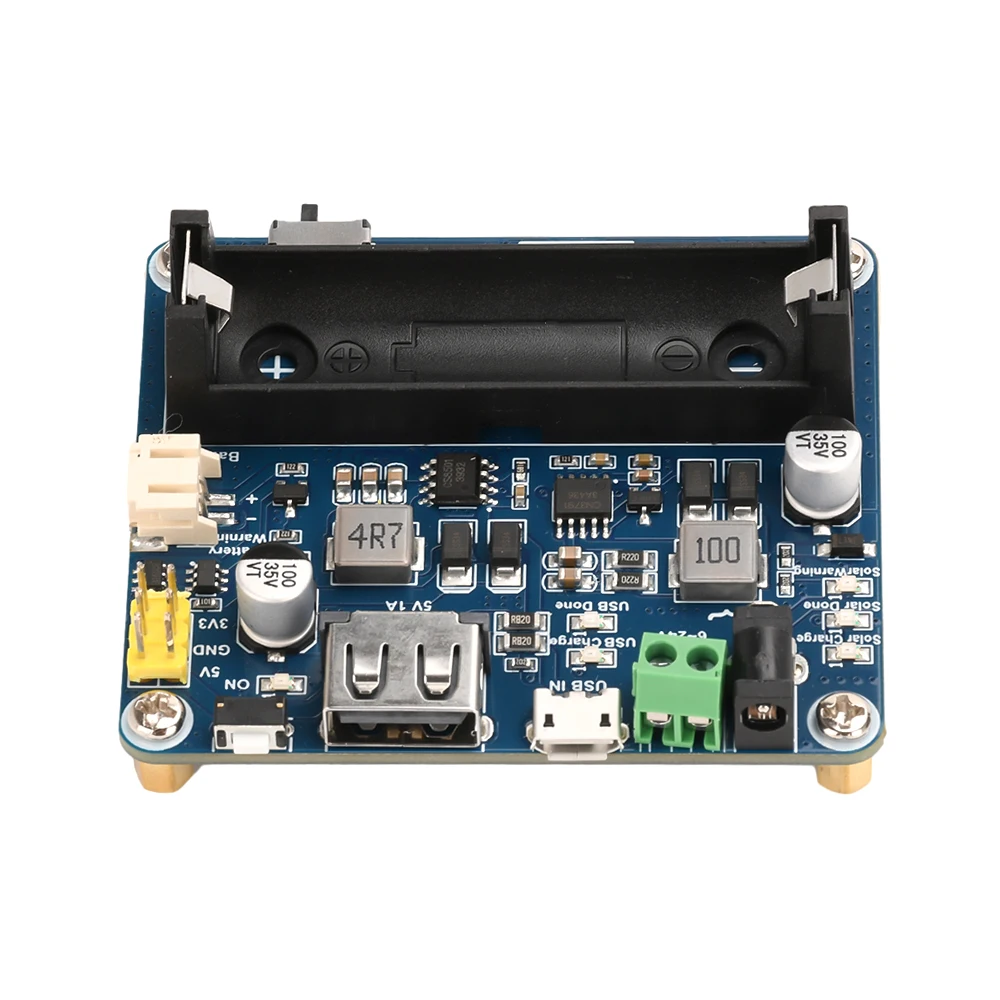

⚡ Introducing the Solar Power Management Module designed for optimal integration with 6V to 24V solar panels. This module not only supports Maximum Power Point Tracking (MPPT), a cutting-edge technology that enhances solar energy conversion efficiency, but also provides versatile charging options including solar panel connections, power adapters, and USB interfaces. It's the perfect solution for DIY solar projects, empowering enthusiasts and professionals alike with reliable power management.

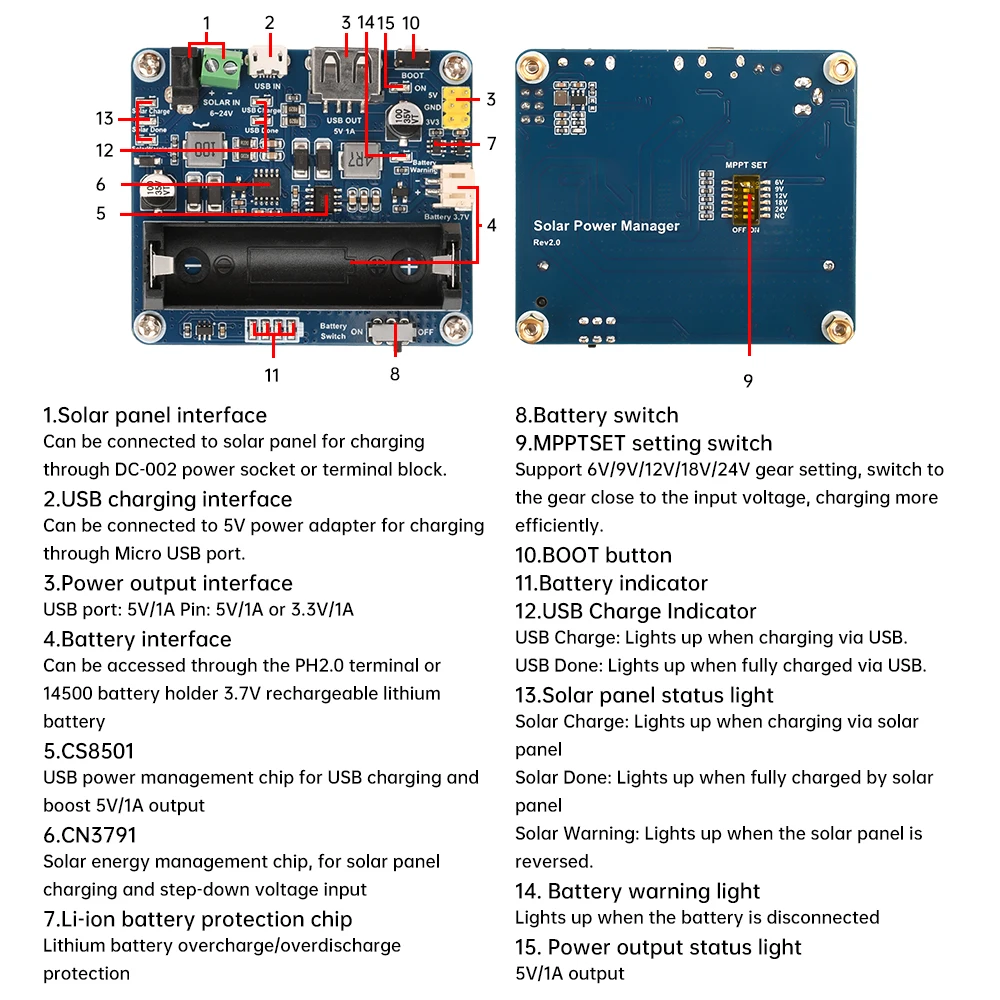

🔧 Key Features:
- Advanced MPPT Technology: The built-in MPPT function significantly increases solar energy harvesting efficiency, ensuring you get the most out of your solar panel array.
- Flexible Charging Options: Whether using solar energy or conventional power sources, this module supports charging through solar panels, power adapters, or USB, making it convenient to use in various setups.
- Wide Voltage Compatibility: Designed to accommodate a range of solar panel input voltages from 6V to 24V, the module can connect seamlessly through a DC-002 power socket or terminal block for easy integration.
- Efficient Charging Settings: The onboard MPPT SET switch allows users to adjust settings based on input voltage, optimizing charging efficiency and performance.
- Diverse Output Interfaces: The module features both pin and USB output interfaces, delivering 5V via the USB output and 3.3V or 5V through the pin interface, facilitating connectivity with various devices.
- Robust Componentry: Equipped with high-capacity aluminum electrolytic capacitors and ceramic capacitors, this module minimizes electrical ripple for enhanced stability and reliability during operation.
- Versatile Battery Holder: Includes a dedicated 14500 battery holder and a PH2.0 battery socket, compatible with 3.7V rechargeable lithium batteries, allowing for easy access to power storage solutions.
- User-Friendly Indicators: Onboard status indicators simplify the monitoring process, providing real-time feedback on solar panel performance and battery status.
- Comprehensive Protection Circuitry: Features multiple safety measures including anti-overcharge, anti-over-discharge, anti-reverse connection, anti-temperature, and anti-current protections, ensuring stable and secure operation in any condition.

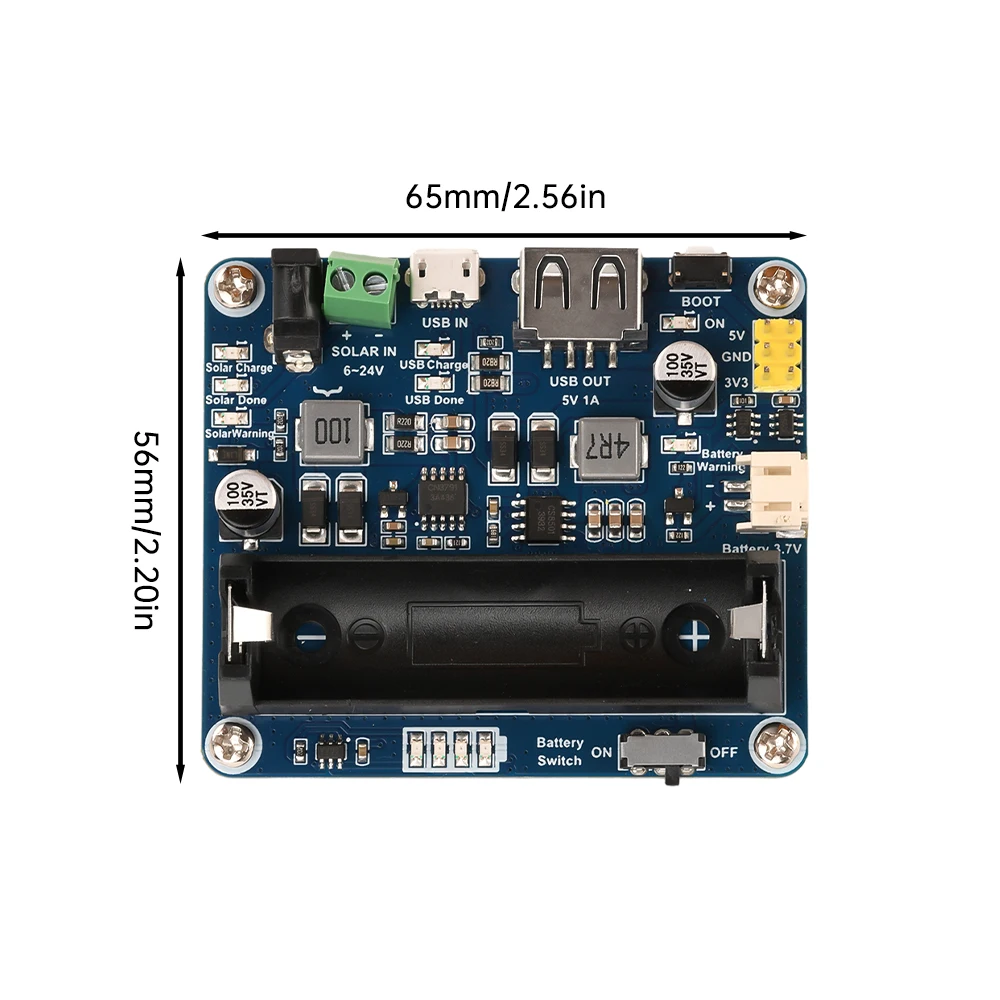

🔒 Technical Specifications:
- Solar Panel Input Voltage: 6-24V (default 6V)
- Charging Modes: Solar panel, power adapter, USB
- Battery Compatibility: 3.7V 850mAh 14500 lithium battery (battery not included)
- USB Input Voltage: 5V (Micro USB interface)
- Power Output: 5V/1A (USB OUT, row pin), 3.3V/1A (row pin)
- Charge Cut-off Protection Voltage: 4.2V ± 1%
- Over-discharge Protection Voltage: 2.9V ± 1%
- Solar Charging Efficiency: Approximately 78%
- USB Charging Efficiency: Approximately 82%
- Battery Boost Output Efficiency: Approximately 86%
- Quiescent Current (Max): <2mA
- Operating Temperature Range: -40°C to 85°C
🔋 Package Contains:

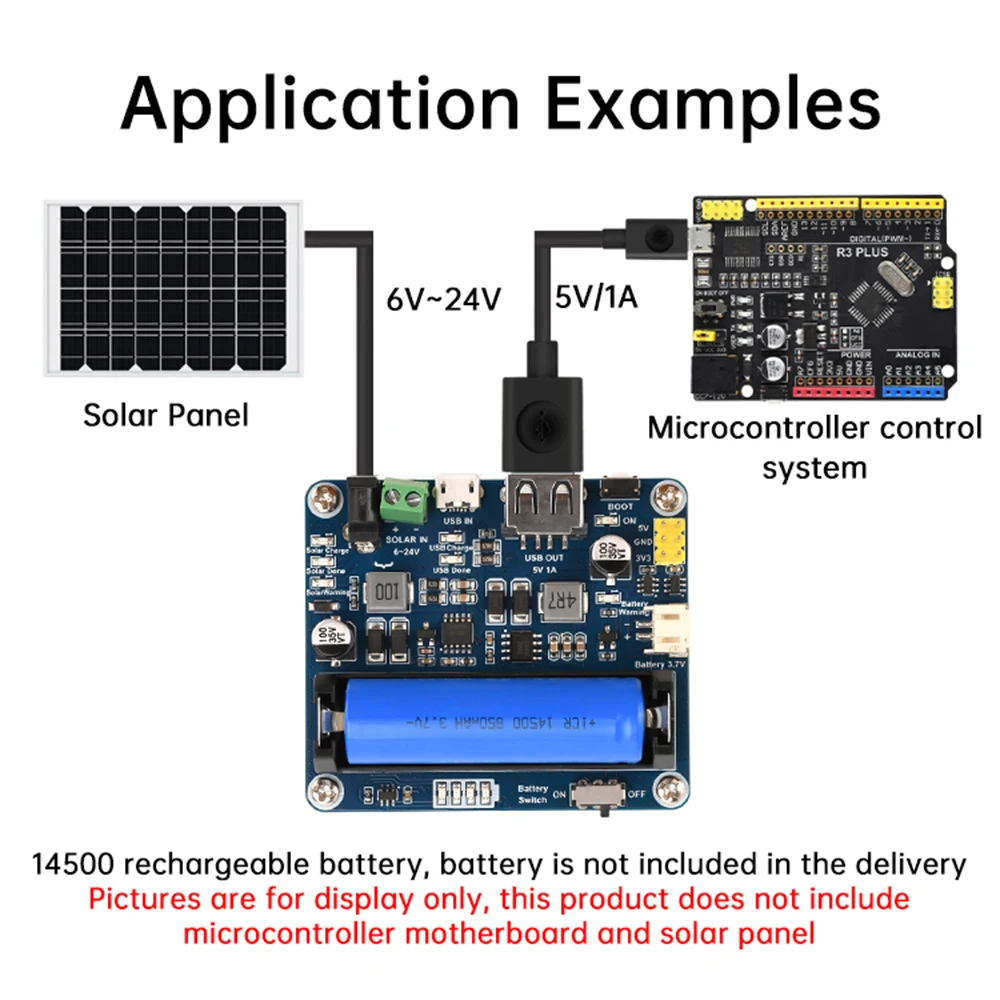

🔋 1 x 6V-24V Solar Panel Power Management Module – an ideal solar charging solution compatible with 850mAh Li-ion batteries, perfect for applications involving Arduino, Jetson, or Raspberry Pi.
