Product Overview:
🌀 The Heltec LoRa 32 V3.2 is a versatile and highly regarded IoT development board, designed specifically for makers and engineers who seek to integrate flexible connectivity solutions into their projects. With its cutting-edge hardware and extensive feature set, this board facilitates a wide range of applications in smart technology implementations.
🔧 Key Features:
- Powerful Microprocessor: Powered by the ESP32-S3FN8 chip, this board features a Xtensa® 32-bit LX7 dual-core processor with a clock frequency of up to 240 MHz, ensuring robust performance for complex tasks and applications.
- Advanced LoRa Technology: Equipped with the SX1262 LoRa node chip, this device supports ultra-long-range communication, making it ideal for projects that require low-power, long-distance connectivity.

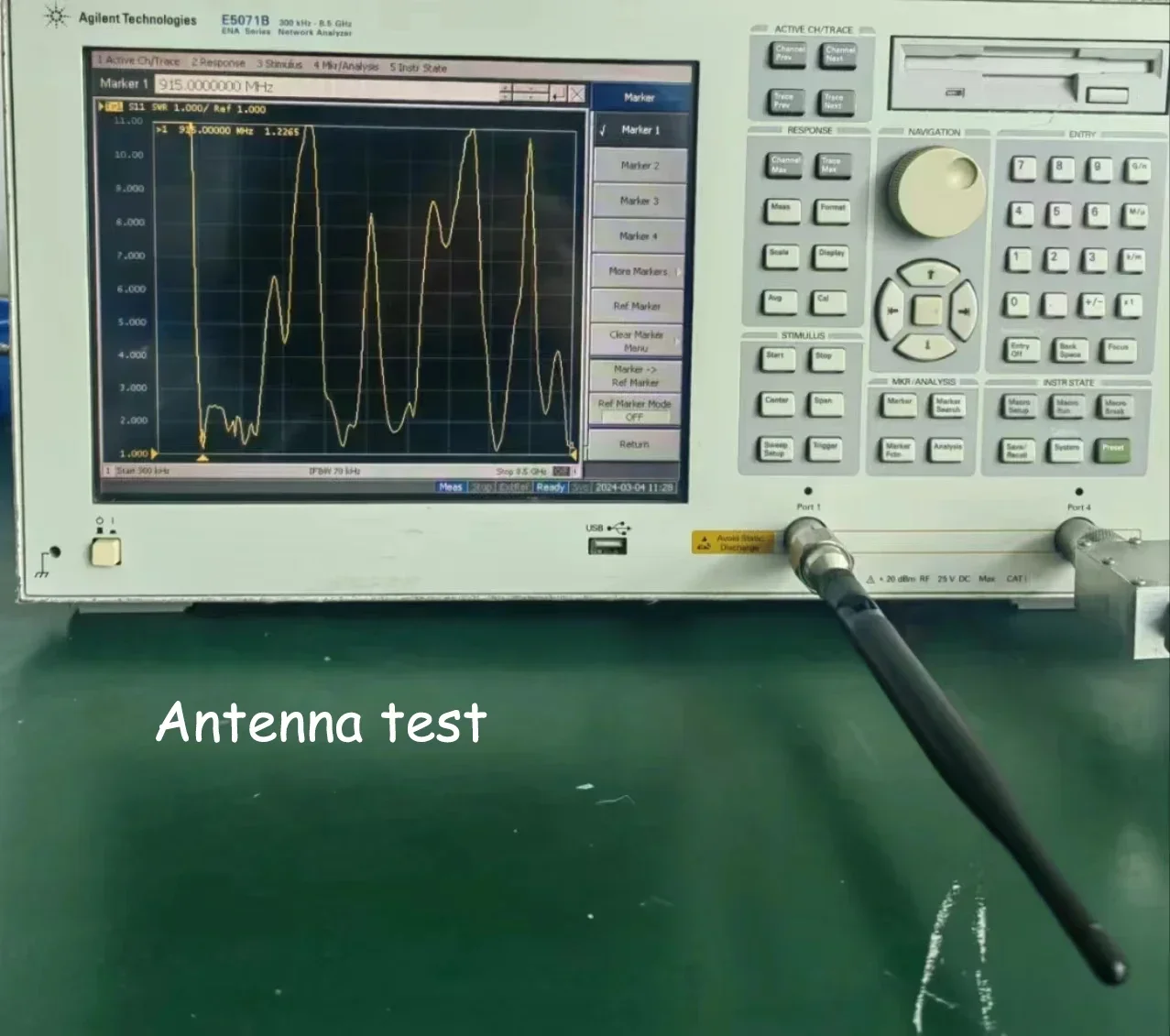

- Comprehensive Connectivity Options: The Heltec LoRa 32 V3.2 supports Wi-Fi, Bluetooth, and LoRa networks, providing multiple avenues for data transmission. A dedicated 2.4GHz metal spring antenna is included for enhanced wireless performance, and a U.FL interface is available for additional antenna configurations.
- User-Friendly OLED Display: The integrated 0.96-inch OLED display, with a resolution of 128x64 pixels, allows for real-time visual representation of crucial information such as debugging data, battery status, and more, streamlining development and troubleshooting processes.
- Robust Safety Features: The Type-C USB interface incorporates multiple protective mechanisms, including full voltage regulation, ESD protection, and short circuit protection, ensuring the board’s reliability in various environments.
- Battery Management System: An onboard SH1.25-2 battery connector provides integrated lithium battery management, including capabilities for charge/discharge management, overcharge protection, and automatic switching between USB and battery power, enabling efficient and safe battery usage.
- Arduino Compatibility: Compatible with the Arduino development environment, the Heltec LoRa 32 V3.2 allows developers to easily use the provided ESP32 + LoRaWAN protocol Arduino library for seamless communication with any LoRa gateway using the standardized LoRaWAN protocol.
- High-Efficiency RF Design: The board is engineered with a focus on low power consumption and optimal RF circuit design, making it well-suited for energy-efficient applications.
🔩 Applications:
🪶 The Heltec LoRa 32 V3.2 is ideal for implementing Internet of Things (IoT) solutions across various sectors including smart cities, agricultural monitoring, home automation, industrial control systems, security applications, and wireless meter reading. Its robust nature and flexibility empower developers to create effective and innovative projects that leverage advanced connectivity technologies.
📦 Contents of the Package:
- 1 x ESP32 LoRa V3.2 OLED development board
- 1 x LoRa Antenna
- 1 x JST 1.25mm-2P Connector
- 1 set of 2.54 pin headers (non-soldered)
