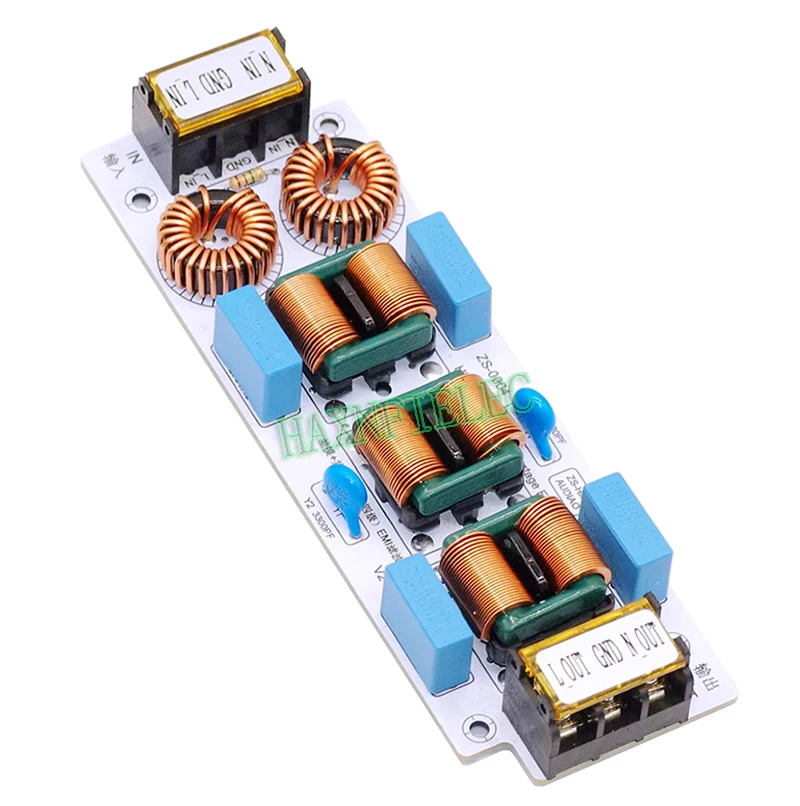

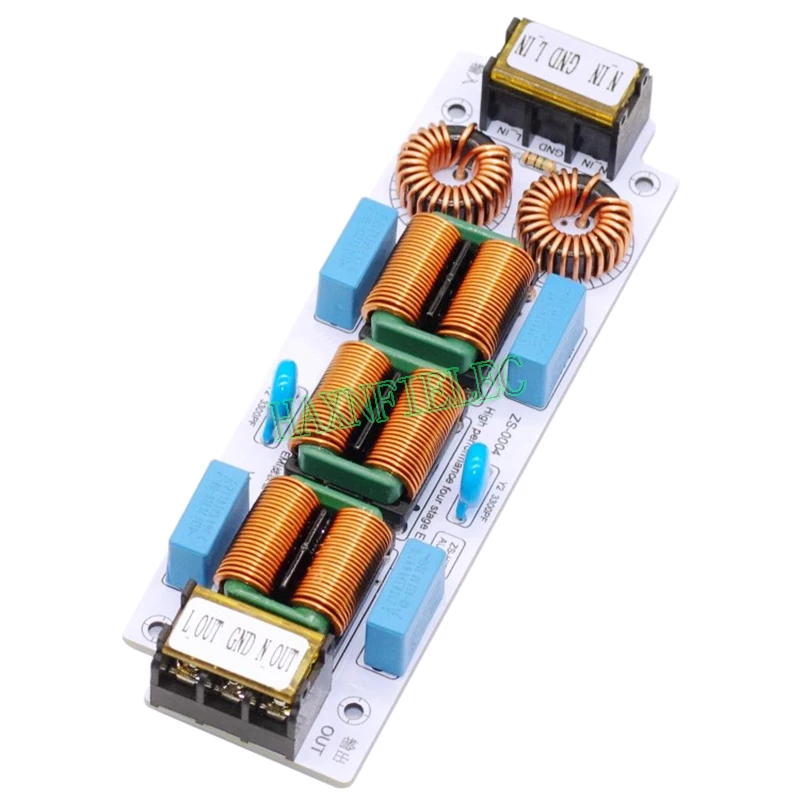

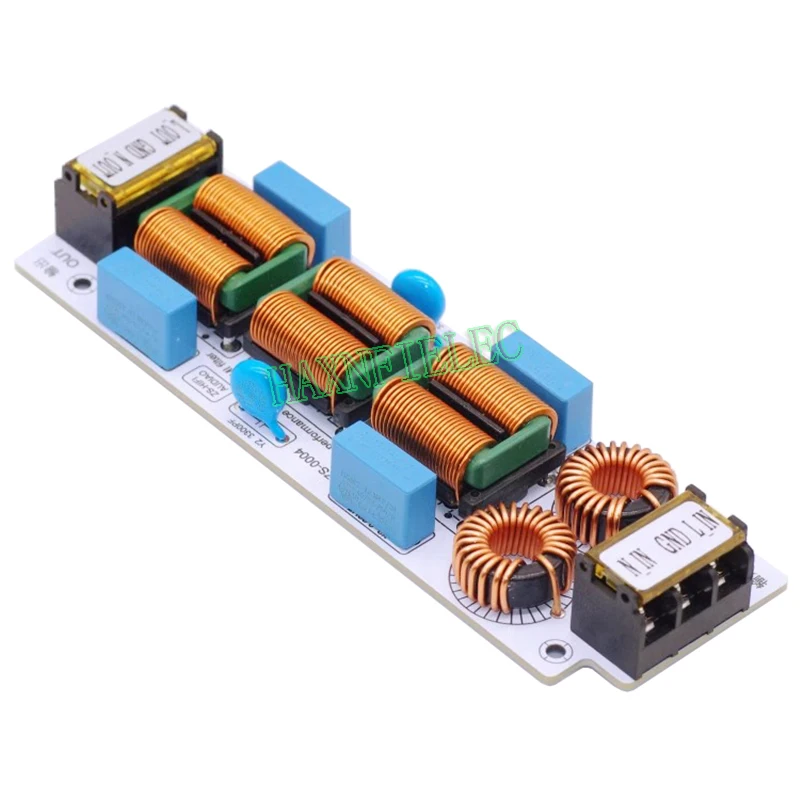

🧲 Product Title: 6A 10A EMI Electromagnetic Interference Power Filter - Four-Stage EMC Differential and Common Mode Power Filtering for Audio Power Amplifiers
🧲 Description: Experience superior performance and sound quality with the 6A/10A EMI Electromagnetic Interference Power Filter. Engineered specifically for audio applications, this advanced power filter employs a meticulous four-stage filtering process to effectively address electromagnetic interference (EMI) in your power supply, enhancing the overall audio performance and fidelity of your power amplifier.
🔧 Key Features:

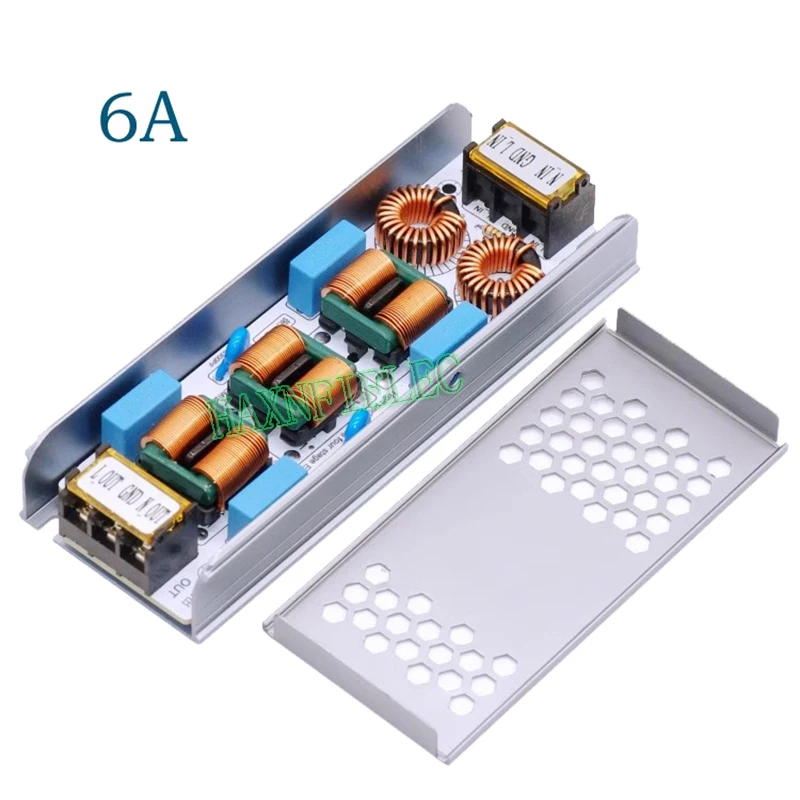

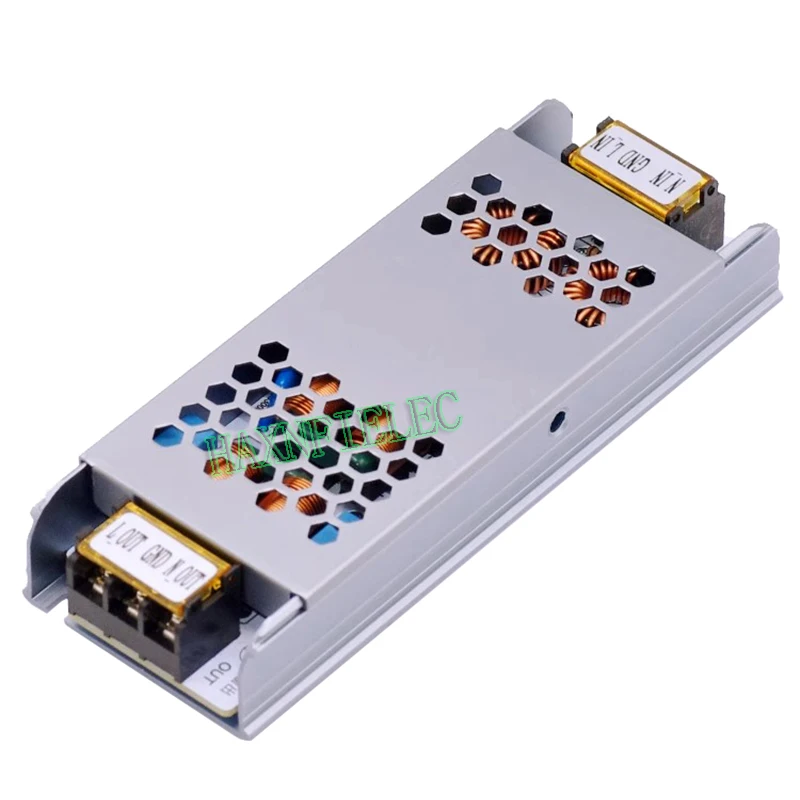

- Ultra-Thin Design: The filter features a sleek, all-aluminum housing that is both lightweight and durable.
- Differential Mode Filtering: Utilizing a set of differential mode filters paired with two high-quality differential mode inductors, the filter is adept at suppressing medium and high-frequency interference from the AC power supply.
- Enhanced Common Mode Filtering: Incorporating three sets of common-mode filtering, the design employs X2 capacitors combined with common mode inductors to create a robust common mode filter. This triple-stage filtering system significantly improves noise suppression, particularly against rapid transient group pulse interference, thereby ensuring a clean power supply.
- Sound Quality Improvement: When used in conjunction with a decoder or power amplifier, this module filters out the DC component of the power supply while eliminating transformer hum and high-frequency noise, resulting in a purer power supply that dramatically elevates the sound quality, enhances resolution, and delivers a quieter audio background.
🛡️ Technical Specifications:
- Name: Four-Stage EMI Power Filter
- Input Voltage: AC 110V-250V (Max 250V)
- Output Voltage: AC 110V-250V
- Rated Current: 6A/10A
- Input/Output Interface: Three wire 7.62 wiring socket

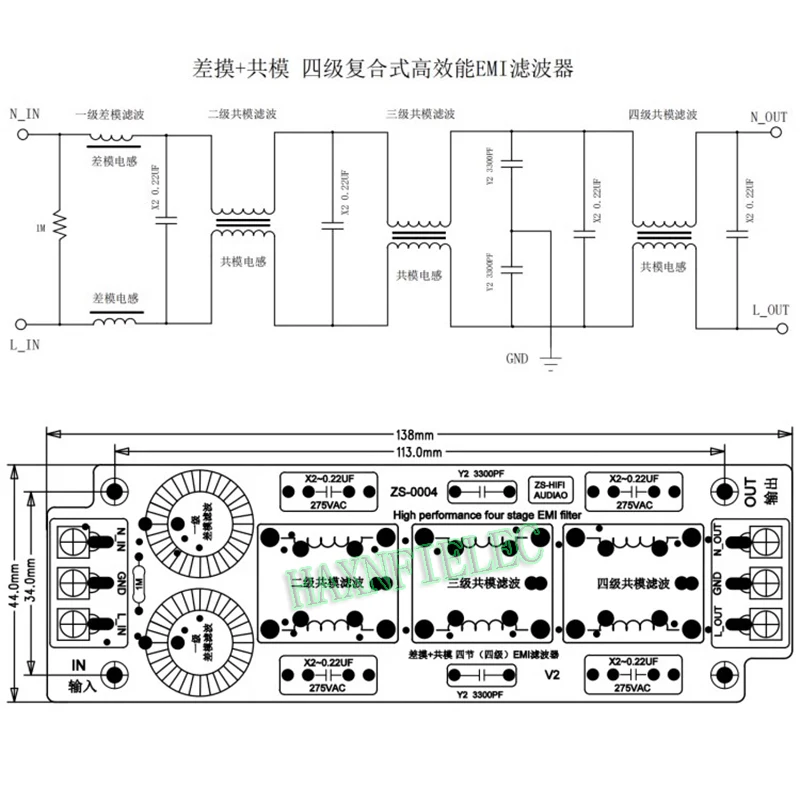

- Functionality: Features first-level differential mode filtering and three levels of common mode filtering, providing bidirectional EMI filtering to prevent interference, extend the service life of electrical appliances, and enhance equipment stability.
💍 Packing List:
- 1 x Four-Stage EMI Power Filter
🧲 Elevate your audio experience and protect your equipment with the 6A/10A EMI Electromagnetic Interference Power Filter, a vital addition for any serious audio enthusiast or professional setup.
