5 - Inch IPS RGB/7 - Inch TN RGB Smart Capacitive Touch Display with WiFi & Bluetooth 800x480 (7 - inch touch)

Product Overview:

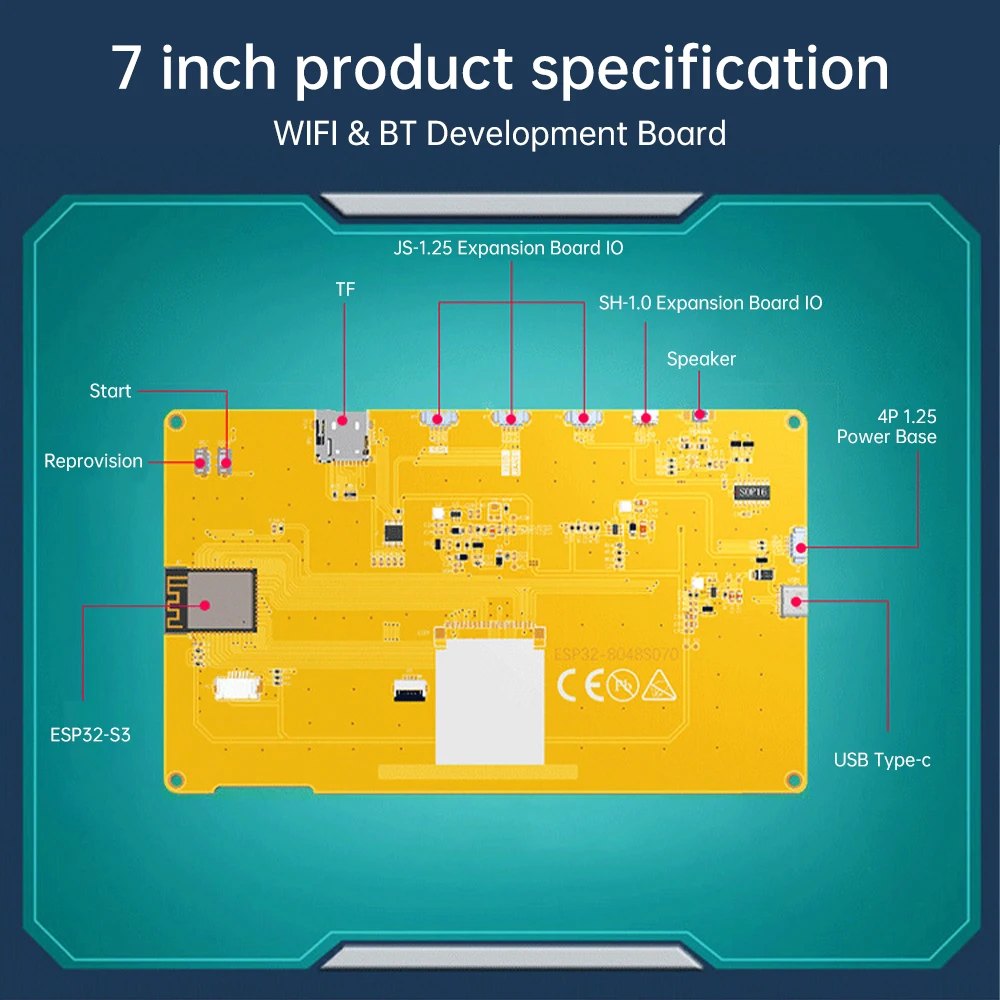

🪶 The ESP32-8048S050 development board is a versatile platform that integrates the powerful ESP32-S3 controller, renowned for its dual-core processor capabilities. Operating at clock frequencies of up to 240MHz, this board is designed to harness the immense potential of the Internet of Things (IoT), serving as a robust development tool for embedded applications requiring a display interface.

🔧 Display Features:

This development board is equipped with two display options: a 5-inch IPS RGB display with a resolution of 800x480 pixels and a 7-inch TN RGB display, also with a resolution of 800x480 pixels. Both displays deliver crisp visuals and vibrant colors, making them ideal for interactive projects and user interfaces.

Processor and Memory:

⚡ The heart of the board is powered by the Xtensa® 32-bit LX7 dual-core processor, which ensures efficient multitasking and performance. With 8MB of PSRAM and 16MB of flash memory, this board supports extensive data handling and storage needs. Additionally, it features a built-in 384KB ROM and 512KB SRAM, along with multiple external storage interface options for enhanced flexibility.

IoT Capabilities:

🧩 Designed specifically for IoT development, the ESP32-8048S050 allows for seamless integration of WiFi and Bluetooth technologies. This makes it suitable for a variety of applications, including remote control apps, environmental monitoring, data aggregation, and parameter adjustments from afar. Developers can leverage the built-in functionalities to create customizable apps featuring rich user interfaces with a wide selection of controls.

Power and Temperature Specifications:

🪶 The development board operates within a voltage range of 3.0 to 3.6V, ensuring compatibility with various power sources. Built to withstand challenging environments, it functions effectively in temperatures ranging from -40°C to 85°C, making it ideal for outdoor IoT solutions and industrial applications.

Physical Dimensions:

👌 The 5-inch version of the development board measures 121mm x 84mm, while the 7-inch variant measures 165mm x 108mm. Both sizes are designed for easy integration into diverse projects, with assembled shell dimensions of 138mm x 85mm x 16mm for the 5-inch model and 184mm x 112mm x 16mm for the 7-inch model.

📦 Package Contents:

📦 The product package includes the following items:

🧰 Set 1: 1x development board

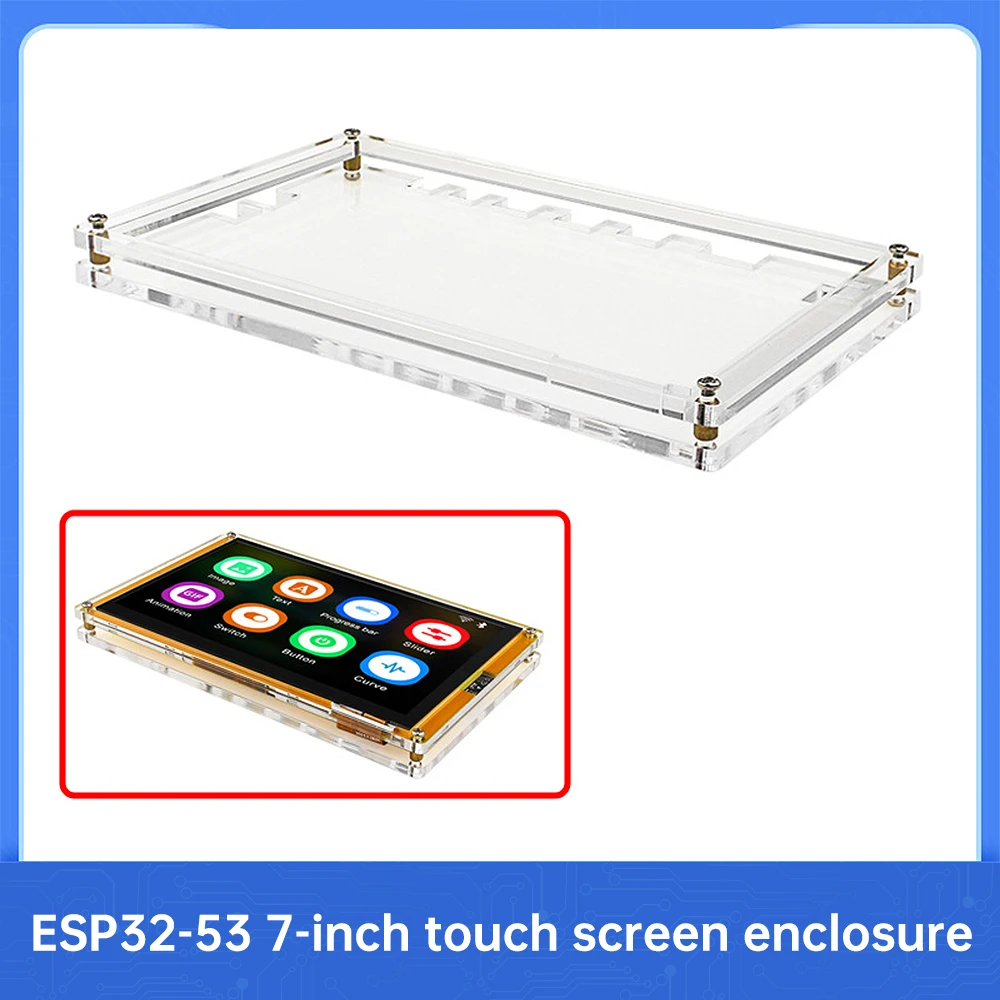

🧩 Set 2: 1x shell (assembly required by the customer)
