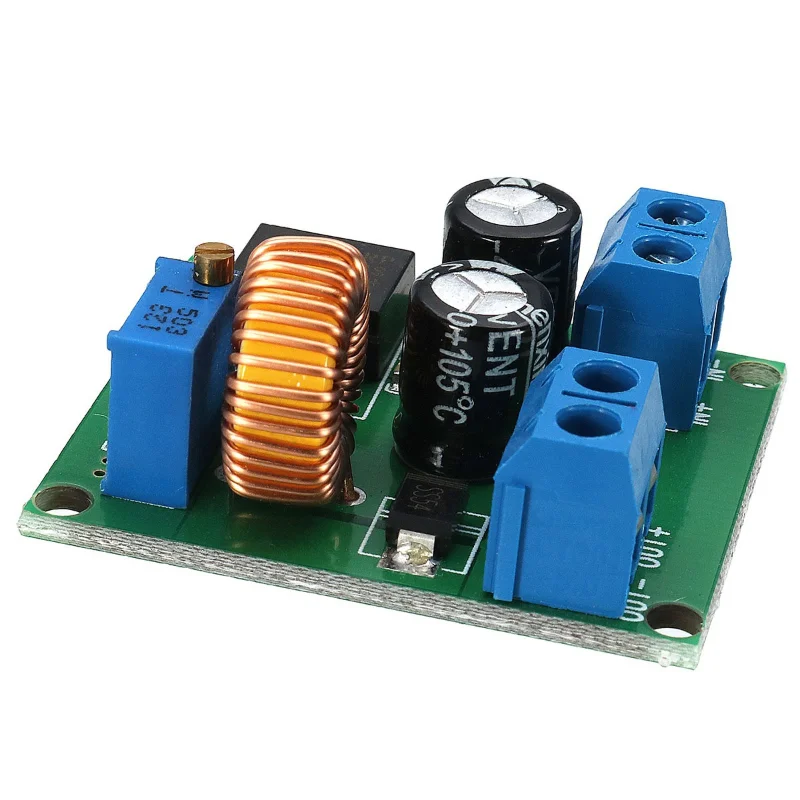

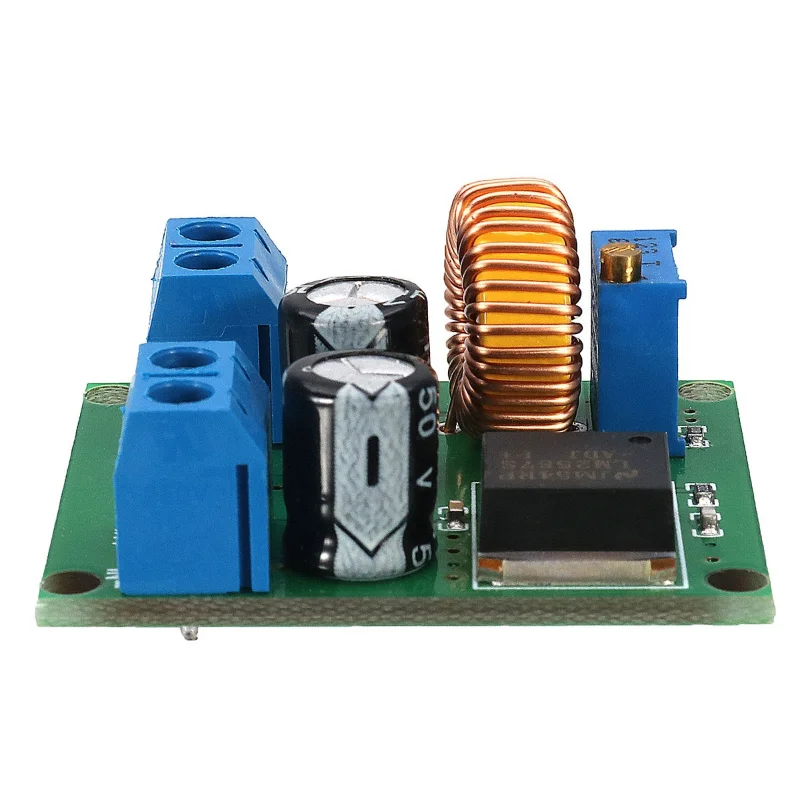

Adjustable Step - Up Power Module, 3V - 35V Input to 4V - 40V Output Boost Converter (1set)

Product Overview:

🧩 Upgrade your power management capabilities with the DC-DC 3V-35V to 4V-40V Adjustable Step Up Power Module. This versatile boost converter is designed to elevate input voltages ranging from 3V to 35V, effortlessly converting them to a customizable output voltage between 4V and 40V. It's an essential component for a variety of applications requiring a reliable and adjustable power source.

Key Specifications:

• Input Voltage Range: 3V to 35V
• Output Voltage Range: Adjustable from 4V to 40V
• Maximum Efficiency: An impressive 94%, ensuring minimal energy wastage
• Compact Size: Measuring just 38mm x 32mm x 15mm (Length x Width x Height), this module easily fits into tight spaces
• Operating Temperature: Ranges from -40°C to 85°C, making it suitable for extreme environments
• Maximum Load Capacity: Supports up to 80W to power demanding devices
• Connection Method: Features easy wiring terminals that eliminate the need for soldering—simply connect your input and output wires

📦 Efficiency Considerations:

⚡ It's important to note that the efficiency of this module is influenced by the voltage difference between the input and output. The smaller the differential, the higher the efficiency and load capacity you can expect, making it an excellent choice for applications with closely matched voltages.

📦 Package Includes:

• 1 x DC-DC 3V - 35V to 4V - 40V Adjustable Step Up Power Module

🏆 This power module is perfect for hobbyists, engineers, and professionals needing reliable voltage boosting solutions tailored to their project specifications. Whether you're working on an electronics prototype, renewable energy project, or any application that requires enhanced power performance, this adjustable step-up converter is your go-to choice.
