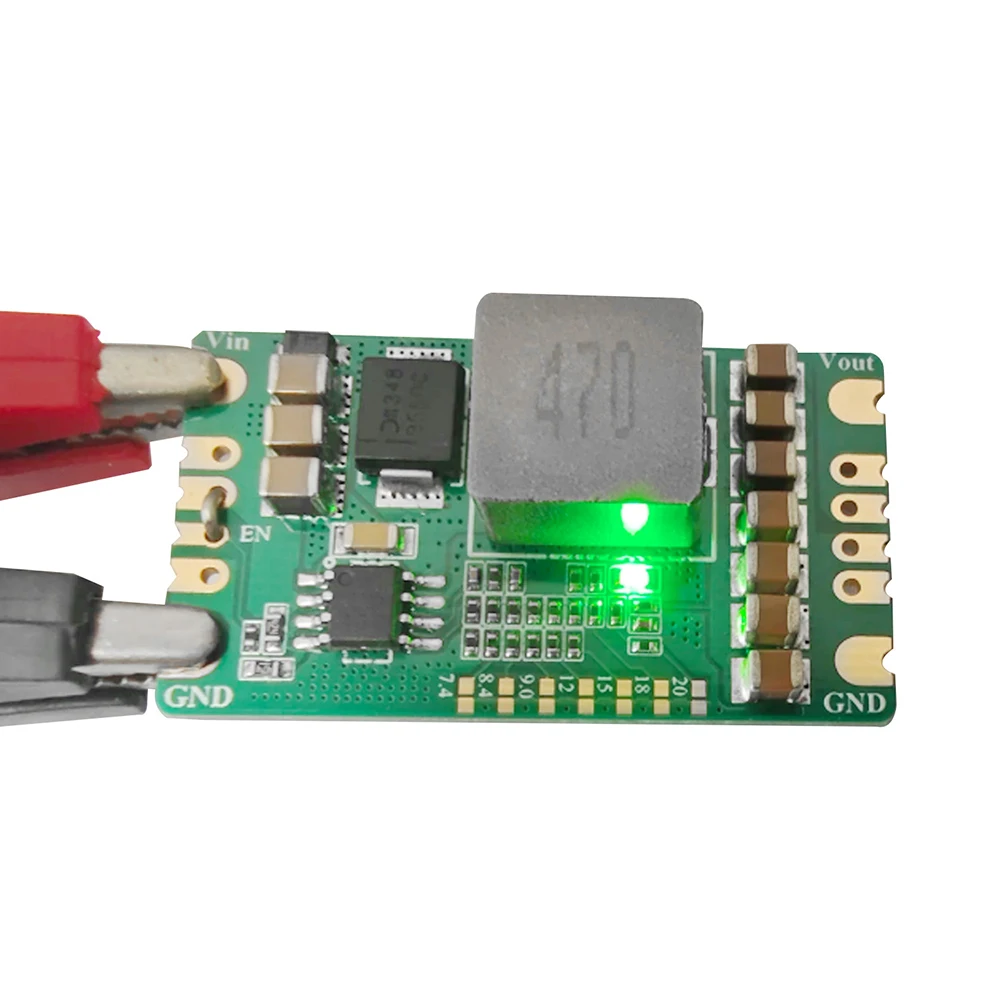

B560C 5A DC-DC Step-Down Buck Converter Module
🧩 The B560C is a versatile and efficient DC-DC buck converter designed to take input voltages ranging from 5V to 60V and step them down to a range of adjustable output voltages, including 5V, 7.4V, 8.4V, 9V, 12V, 15V, 18V, and 20V. This makes it an ideal solution for a variety of industrial power supply applications where flexibility and reliability are paramount.
🔧 Key Features:
- Wide Voltage Input: With an input voltage range of 5V-60V, this module is well-suited for different power supply needs across various applications.
- Adjustable Output Voltage: The flexibility of adjustable output voltage makes it easy to match the converter with various loads, simplifying design and implementation.

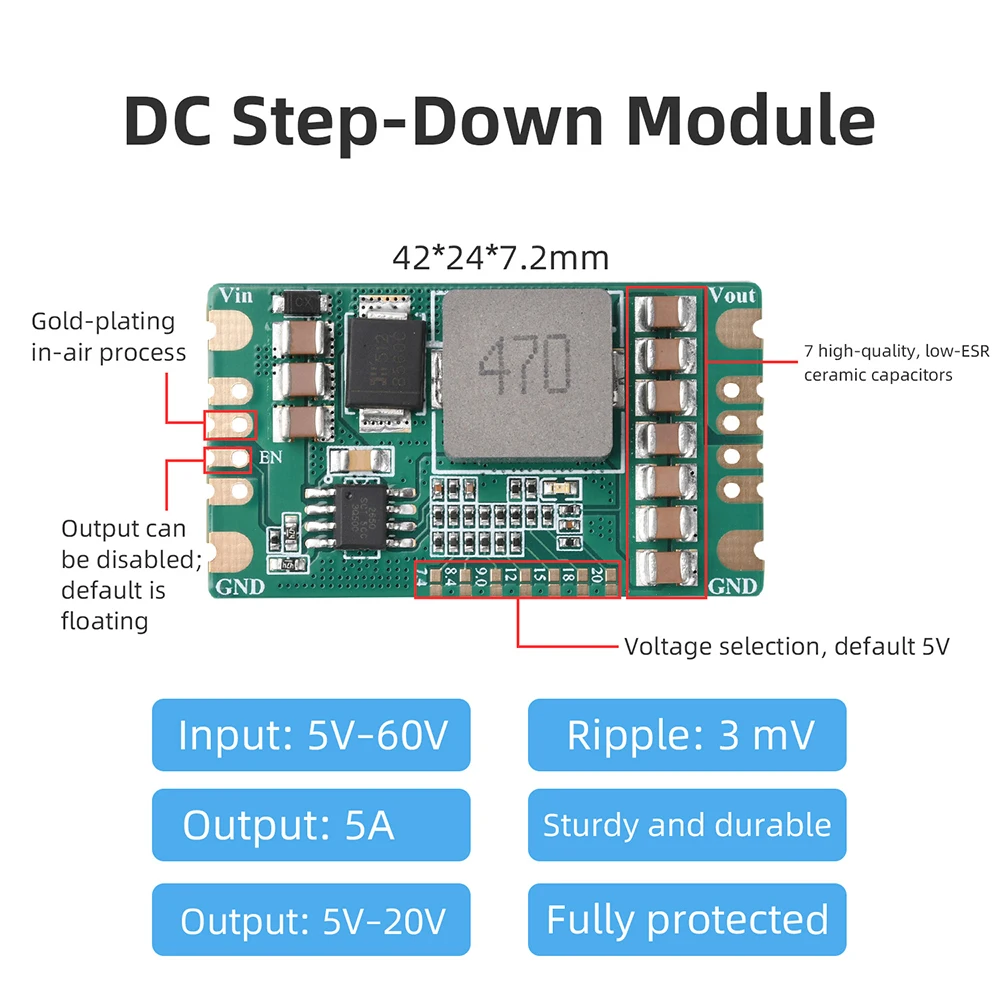

- Compact Design: Measuring only 42 x 24 x 7.5 mm, the small footprint of this module allows for efficient use of PCB space and easier integration into existing systems.
- High Efficiency Performance: This buck converter operates with high efficiency, minimizing heat generation during operation and ensuring long-term stable performance.
- Output Current Capability: Capable of delivering up to 5A of output current, the B560C meets the demands of high-power equipment, making it suitable for various applications.
- Low Ripple Noise: With a ripple noise as low as 3mV, it ensures clean power delivery for sensitive electronic devices, enhancing overall performance.
📦 Operational Parameters:
- Input Voltage: DC 5V-60V
- Output Voltage: Optionally adjustable to DC 5V/7.4V/8.4V/9V/12V/15V/18V/20V
- Output Current: Up to 5A
Usage Precautions:
- To ensure proper functionality, the input voltage must exceed the desired output voltage by at least 2V.
- Monitor module heating, especially when operating with a significant difference between input and output voltages; consider using heat sinks for sustained loads over 3A.
- For prolonged operation at high currents, applying silicone grease can enhance heat dissipation.
🧩 Included in the Package:
- DC-DC Adjustable Step-Down Power Module: 1 unit
💍 Designed for power management and distribution in complex electronic systems, the B560C is an essential component for delivering reliable and efficient power in diverse applications.
