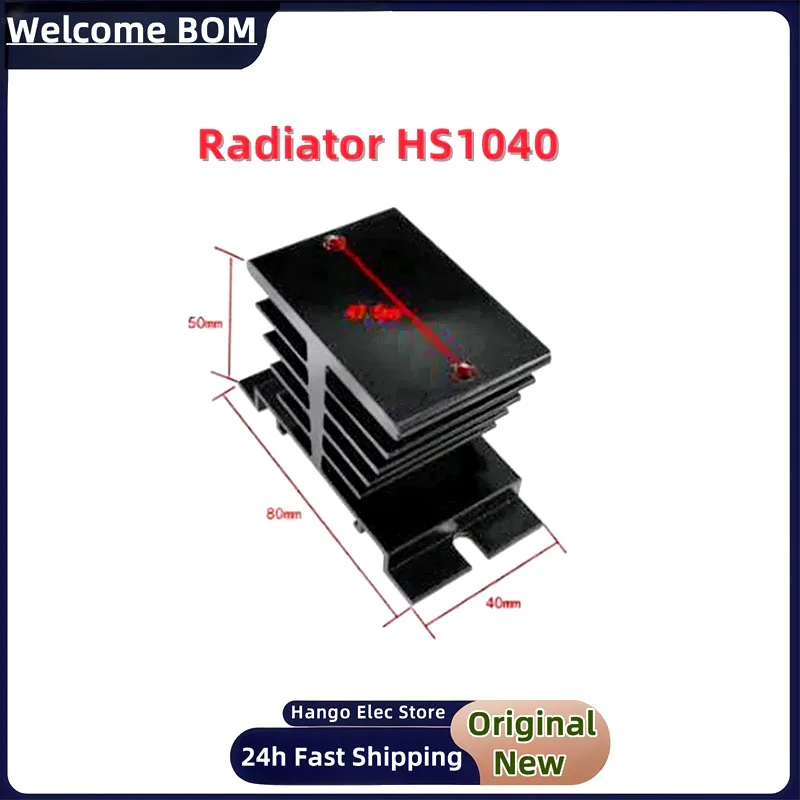

High - Power Bidirectional Thyristor Module for Spot Welding - 1000V Withstand Voltage (Radiator RS1040)

BTA100A Bidirectional Thyristor Module

🏆 Introducing the BTA100A bidirectional thyristor module, designed for high-performance applications such as various small high-power spot welding machines. This versatile module is available in multiple current ratings: BTA40A, BTA50A, BTA60A, BTA80A, and BTA100A, accommodating a wide range of operational needs. With a remarkable withstand voltage of 1000V, this module is engineered for reliability and efficiency in demanding environments.

💍 The BTA100A module features advanced thermal management considerations. When operating current levels exceed 5A, it is crucial to incorporate an effective heat sink to provide auxiliary heat dissipation and protect the sensitive components from potential damage. As a best practice, thermal grease should be applied between the base plate of the solid-state relay and the heat sink during installation to ensure optimal thermal conductivity.

😎 For applications where load currents exceed 40A, we strongly recommend integrating forced air cooling solutions, such as fan-assisted cooling, to further enhance heat dissipation. This precaution is essential to maintain the integrity and performance of the thyristor module under demanding conditions.

💍 The BTA series is a testament to our commitment to delivering top-quality electronic components that meet the rigorous demands of various industries. Our extensive inventory features a broad selection of electronic components, including specialized ICs for home appliances, automotive systems, and communication technology. We also offer a variety of packaging options such as SMT (SOP), direct plug (DIP), QFP, and PLCC, catering to a diverse range of applications.

⚡ Thank you for choosing our products. We appreciate your support and wish you an excellent day ahead!
