Introducing the M12-5 Core Female to Male Straight Head Wire:
🔩 This versatile double-ended wire is designed for seamless connectivity within NMEA 2000 systems. With lengths ranging from 0.5 to 4 metres, this wire boasts a durable metal casing, ensuring robust protection and longevity in various applications.
🧩 Sensor Parameter Customization:
- Speed Ratio: Adjustable range of 1 to 200, allowing for tailored performance based on your specific needs.
- Engine Tilt/Trim: Measures from 0 to 1 with a 90-ohm output, providing precise feedback for engine positioning.
- Oil Pressure: Ranges from 10 to 184 ohms, correlating to a pressure range of 0 to 10 bar for optimal monitoring.
- Temperature: Operates between 301 to 22 ohms, reflecting temperatures from 40 to 120 degrees Celsius, ensuring accurate thermal readings.
- Rudder Position: Offers measurements from 0 to 1 with a 90-ohm output to assist in navigation control.
- Fuel Level: Compatible with a 0 to 190-ohm system for precise fuel level monitoring.
- Freshwater Level: Measures from 0 to 1 with a 90-ohm output for accurate freshwater level indication.
- Wastewater Level: Also measures from 0 to 1 with a 90-ohm output to keep track of wastewater status.
🛠️ Environmental Specifications:
- Operating Voltage: Compatible with a voltage range of 9 to 32 Volts (DC).
- Power Consumption: Minimal consumption of less than 120mA assists in energy efficiency.
- Operating Temperature: Able to function effectively within a temperature range of -30 to 75 degrees Celsius.
- Storage Temperature: Safe for storage in conditions ranging from -40 to 85 degrees Celsius.
- Degree of Protection: Rated at IP67, ensuring protection against dust and immersion in water.
🧩 Connection Guide:
- Connects directly to the “Micro-C" NMEA 2000 interface for a hassle-free setup.
- Connect to the appropriate interface determined by your specific functional requirements.
🧩 Package Includes:

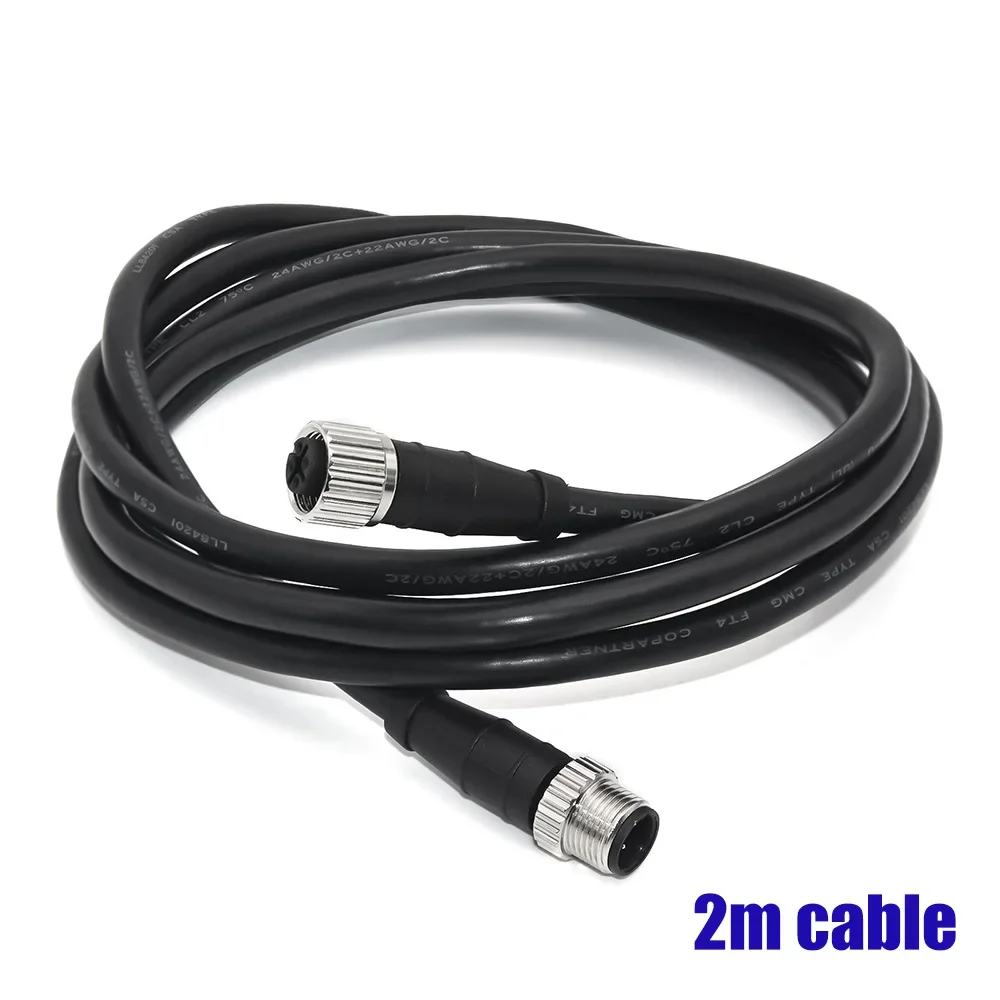

- 1 x Cable (as depicted in the accompanying image)
🏆 This M12-5 Core Wire ensures reliable and efficient connections in marine electronic systems, enhancing your overall experience and performance.
