🛡️ Introducing the BMS 10S 36V 30A Battery Protection Board:
💍 This advanced Lithium Battery Protection Board is designed specifically for 18650 lithium batteries, offering robust protection and performance features tailored for high-demand applications, such as electric vehicles.
🔧 Key Features:
- Precise Voltage Monitoring: The board continuously monitors individual battery voltages to ensure safe and stable operation across all cells, minimizing the risk of damage.
- High Current Output: With a continuous output capability of up to 30A, this protection board meets the rigorous demands of high-performance electric vehicles and other demanding applications.
- Built-in Equalization Circuit: Designed to enhance battery lifespan and overall performance, the equalization circuit ensures that all cells maintain a balanced charge, leading to improved efficiency.
- Intelligent Temperature Control: The protection board features an intelligent temperature management system that prevents performance issues or potential damage due to excessive heat, maintaining optimal operating conditions.
- High-Quality Components: Constructed with premium MOSFETs and capacitors, this protection board is built for reliability and long-lasting performance, ensuring that it can withstand the rigors of daily use.
🧩 Technical Specifications:
- Charging Voltage: DC 36V
- Over-Charging Protection: Automatically engages to prevent battery damage.
- Over-Discharge Protection: Engages at a voltage of 2.6V to protect battery integrity.
- Over-Current Protection: Safeguards against current surges.
- Short-Circuit Protection: Ensures safe operation by preventing potential short circuits.
- Maximum Working Current: 30A MAX
- Continuous Discharge Current: 20A MAX
- Charging Current: 20A MAX
- Equalizing Voltage: 4.2V
- Temperature Protection: Discharge high temperature threshold of 75°C; charge low temperature threshold of -7°C.
- Compatible Battery Types: Supports 3.7V ternary lithium cobalt and lithium manganese batteries.
🧩 Installation Instructions:
💍 Proper wiring is crucial for optimal performance. Follow these steps to ensure successful installation:
- Carefully connect the wires corresponding to each battery section, ensuring both effective connection and proper voltage order.
- Solder the B- lead from the board to the total negative B- of the battery pack for a reliable connection.
- Align the plug of the wire harness with the protection board socket, ensuring secure docking post B- connection.
- Solder the B+ and C- leads to the appropriate terminals of the charging connector, maintaining insulation to avoid short circuits.

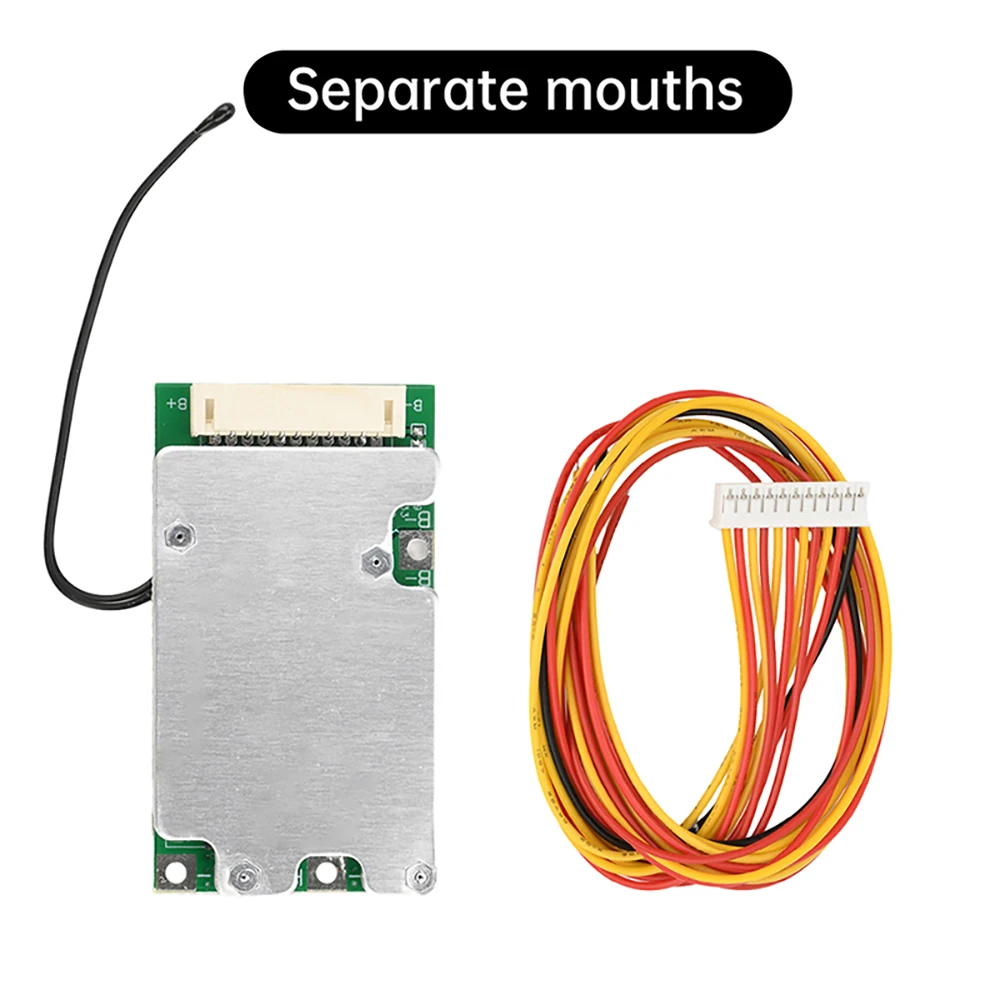

🔒 Package Includes:
- Lithium Battery Protection Board: 1 unit
- Acquisition Cable: 1 unit
🧩 This BMS 10S 36V 30A Battery Protection Board is an essential component for anyone looking to enhance the safety and reliability of their lithium battery applications. Upgrade your battery management system today for improved performance and longevity!
