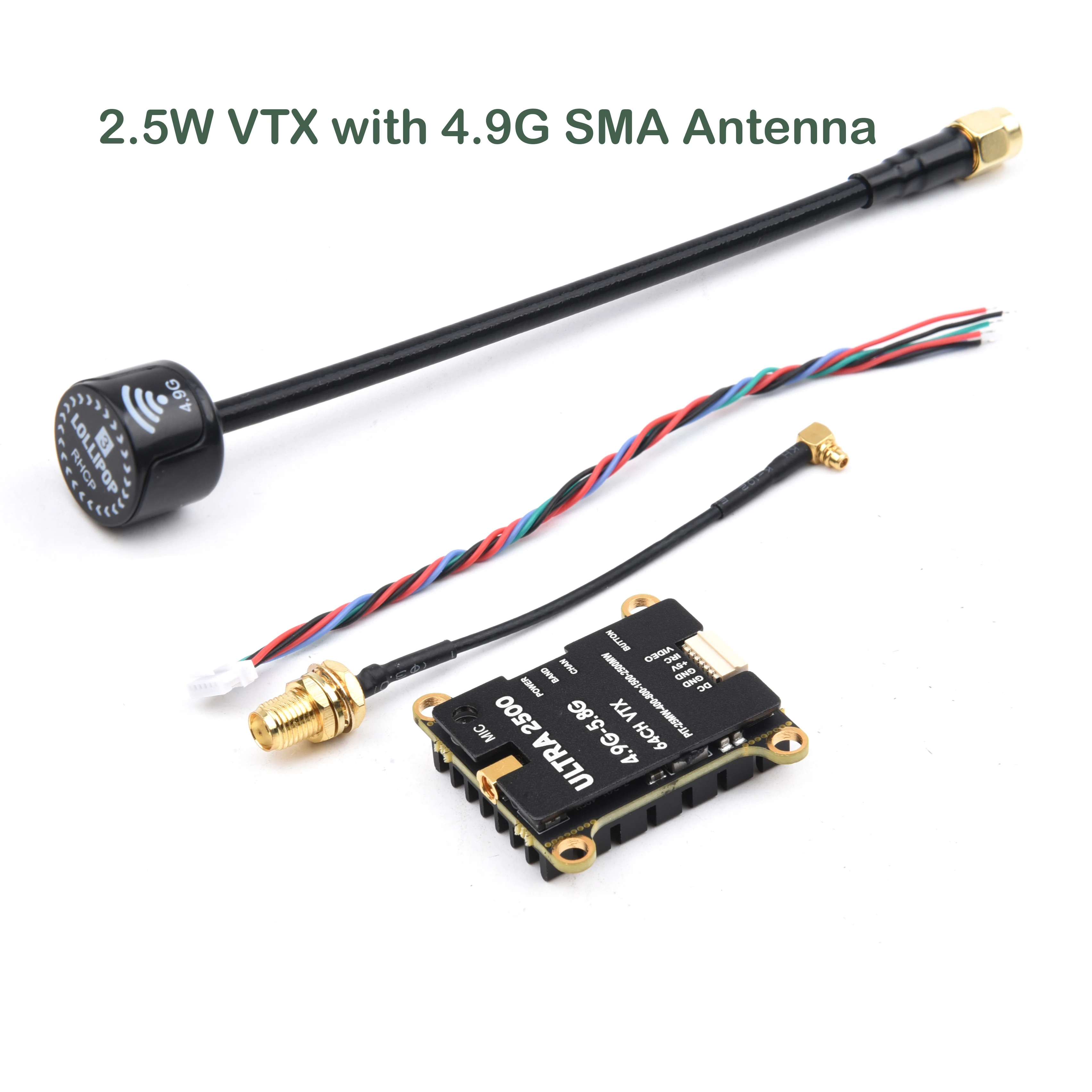

High-Power Long Range FPV VTX Transmitter with Antenna (2.5W with 4.9G SMA)

🏆 Introducing the Ultra1600 FPV VTX Transmitter: This high-performance 64-channel FPV (First Person View) transmitter is designed for serious drone racing enthusiasts who demand long-range capabilities without compromising on video quality. Operating on frequency bands from 4.9GHz to 5.8GHz, the Ultra1600 ensures reliable transmission even in challenging environments.

Key Specifications:

• Model: Ultra1600 VTX 4.9G-5.8G 1.6W
• Input Voltage: DC 7-36V (compatible with 2-8S battery systems)
• Output Power: Select from multiple power settings including 25mW, 400mW, 800mW, 1600mW, and Pit mode for versatile use scenarios.
• Video Format: Supports both PAL and NTSC formats to ensure compatibility with your camera setup.
• Built-in Microphone: Capture audio along with video for an immersive FPV experience.
• Compact Design: Measures just 36.5mm x 36.5mm x 12mm and weighs only 15g (without cable), making it easy to integrate into various drone frames.
• Mounting Compatibility: Features mounting holes with a distance of 30.5mm x 30.5mm (M3), facilitating straightforward installations.
• Connector Types: Equipped with a MMCX connector for the antenna and a GH1.25-6P connector for cable connection to ensure secure and efficient setups.
• Protocol: Utilizes the IRC Tramp protocol, ensuring seamless communication between the transmitter and receiver.
• Input Impedance: Standardized at 75Ω for optimal performance.
• Output: Provides a 5V output with 600mA capability to power your camera directly, simplifying your setup.

🔒 Note: For dual-band operation (4.9G and 5.8G), please ensure your antenna and receiver (VRX) are capable of covering the appropriate frequency range. Using separate antennas and receivers may be necessary if full coverage is not supported.

The Ultra1600 VTX is an ideal choice for passionate FPV racers and hobbyists looking to elevate their flying experience with superior transmission strength and clarity. Elevate your drone’s capabilities and enjoy the freedom of long-range flight with this robust and versatile transmitter.
