📦 Product Overview: Introducing the DC5V Unswitched Four Spray Humidifier Module Atomization Control Board – a cutting-edge DIY ultrasonic nebulizer designed for versatility and efficiency. Crafted with premium materials, this compact module is engineered for easy installation and seamless integration into your projects.
🔧 Key Features:
- High-Quality Build: Manufactured from superior materials to ensure durability, this product is 100% brand new and features a compact design ideal for various applications.
- Dynamic Four Head Spray: Equipped with four spraying heads, this humidifier delivers a robust fog volume with continuous atomization, eliminating the need to switch the power on and off.
- Advanced TYPE-C Interface: Enjoy enhanced versatility with the upgraded TYPE-C interface, which allows for stable performance and easy operation, making it accessible for users at any skill level.
- Efficient and Long-Lasting: Designed for high efficiency, this module activates instantaneously upon electrification and is built for a long operational lifespan.
- Diverse Applications: Perfect for DIY enthusiasts, this module is suitable for self-made projects, plant hydration, and various product applications. The included brackets and cotton swabs facilitate straightforward assembly.
📦 Technical Specifications:

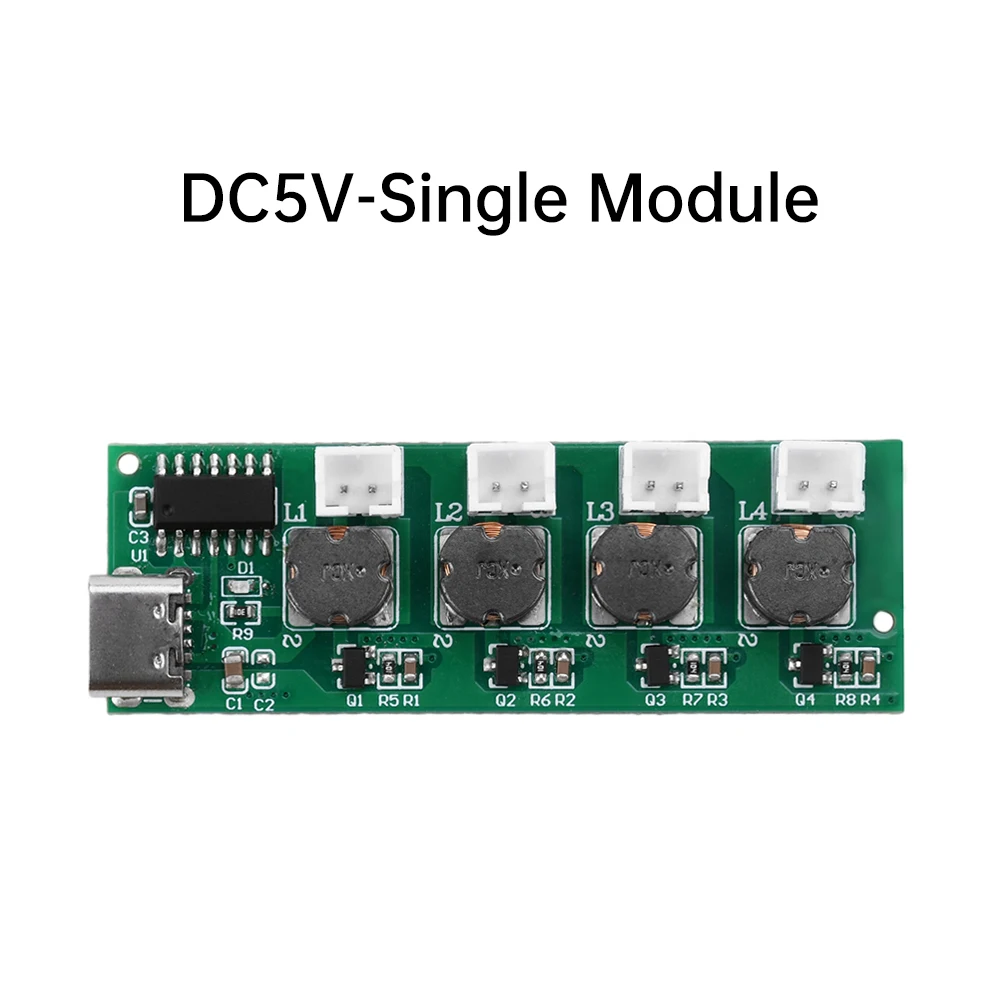

- Name: Unswitched Atomization Drive Board
- Material: 1.2MM FR-4
- Power Plug: TYPE-C Interface
- Rated Voltage: DC5V
- Rated Current: 300MA (minimum 2A)
- Power Consumption: 2.5-3W
- Atomization Frequency: 108KHZ ± 2KHZ
- Module Dimensions: 57 * 19MM
- Cotton Swab Dimensions: 7 * 121MM
Nebulizer Parameters:
- Drive Voltage: 5V
- Resonant Frequency: 108-110KHZ ± 5
- Rated Power: 2W
- Punch Count: 1100
- Aperture Size: 4-5UM
- Silicone Sleeve Outer Diameter: 20MM
- Rubber Ring Thickness: 3MM
- Steel Plate Diameter: 16MM
- Wire Length: 25CM
- Wire Terminal: PH2.0
💍 Included in Package:
- 1 x Humidifier Module
- 1 x Fixed Bracket
- 4 x Transparent Cotton Stick Holders
- 4 x Support Seats
- 4 x Springs
- 4 x Cotton Swabs
- 4 x Nebulizers
🔎 Enhance your DIY projects with the DC5V Unswitched Four Spray Humidifier Module. This innovative device is perfect for anyone looking to implement atomization technology efficiently and effectively.
