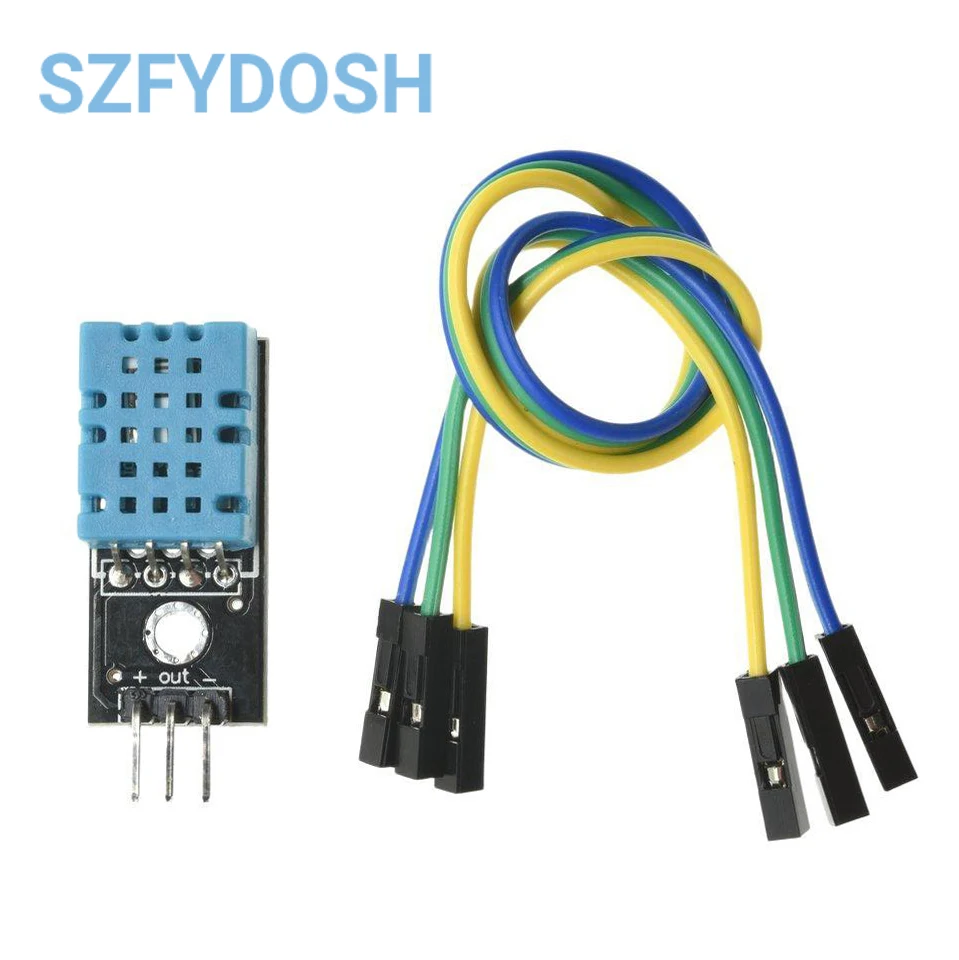

Enhanced Digital Temperature & Humidity Sensor Module with LED Display and Dupont Line for DIY Electronic Projects (DHT11 Module)

📦 Overview: Enhance your DIY electronics projects with the DHT11 Digital Temperature and Humidity Sensor Module. This compact and efficient sensor is perfect for a range of applications, from home automation systems to scientific experiments. Compatible with Arduino and other microcontrollers, it provides accurate environmental data in a user-friendly format.

Specifications:

• Dimensions: 30.5mm (Length) x 12mm (Width) x 7.2mm (Height)
• Sensor Model: DHT11
• Working Voltage: DC 5V

🔧 Features:

• Humidity Measurement Range: 20% to 90% Relative Humidity (RH)
• Humidity Measurement Accuracy: ±5% RH
• Temperature Measurement Range: 0°C to 50°C
• Temperature Measurement Accuracy: ±2°C
• Working Voltage: Compatible with both DC5V and 3.3V
• Output: Digital signal
• Data Port: Includes a pull-up resistor for easy interfacing
• Installation: Equipped with 3mm fixing screw holes for straightforward mounting

⚡ Wiring Instructions:

• VCC: Connect to the positive terminal of a 3.3V or 5V power supply
• GND: Connect to the negative terminal of the power supply
• DATA: Connect to the I/O port of the microcontroller

⚡ Important Note: Ensure to connect the VCC and GND correctly; reversing these connections can cause damage to the sensor.

This DHT11 sensor module is an essential tool for anyone looking to monitor and control temperature and humidity levels in their electronic projects. Embrace the power of real-time environmental sensing and elevate your creations today!
