Enhanced Brushless Motor for RC Aircraft and Multi - Copters (A2212 KV2700)

Introducing the New A2212 Brushless Motor Series

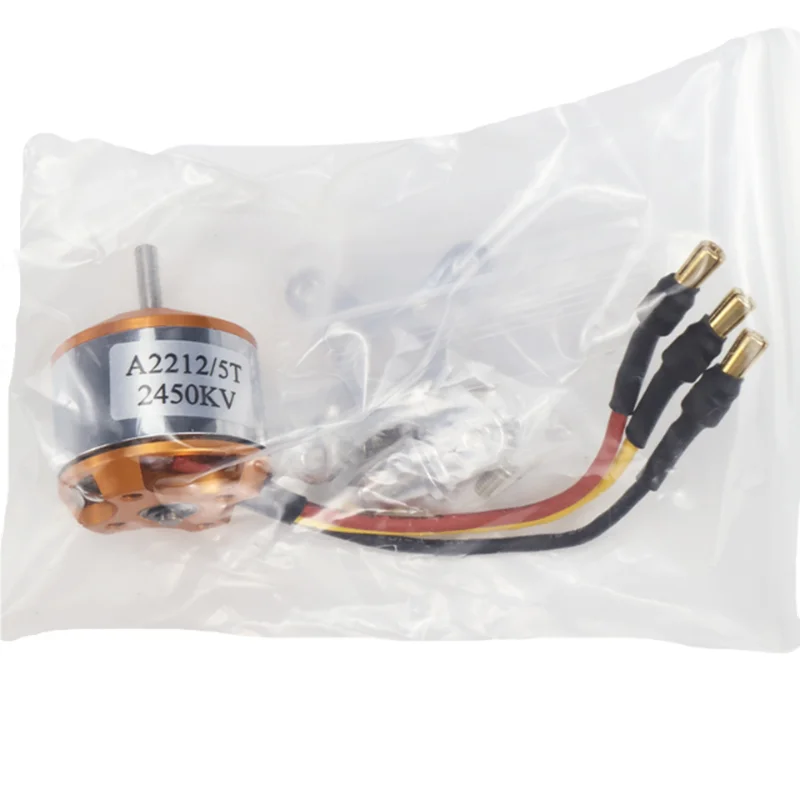

🧩 Elevate your RC aircraft experience with the versatile and powerful XXD A2212 brushless outrunner motors. Designed for enthusiasts and professionals alike, these motors come in a variety of KV ratings to suit different flying styles and setups. Choose from four models: 930KV, 1000KV, 1400KV, 2200KV, 2700KV, and 2450KV, allowing you to customize performance based on your aircraft's requirements.

Technical Specifications:

A2212 930KV Motor:

• KV Rating: 930
• Max Efficiency: 80%
• Max Efficiency Current: 4-10A (>75%)
• Current Capacity: 12A (60s)
• No Load Current @ 10V: 0.5A
• Cell Compatibility: 2-3 Li-Poly
• Motor Dimensions: Φ27.5 x 30mm
• Shaft Diameter: Φ3.17mm
• Weight: 47g

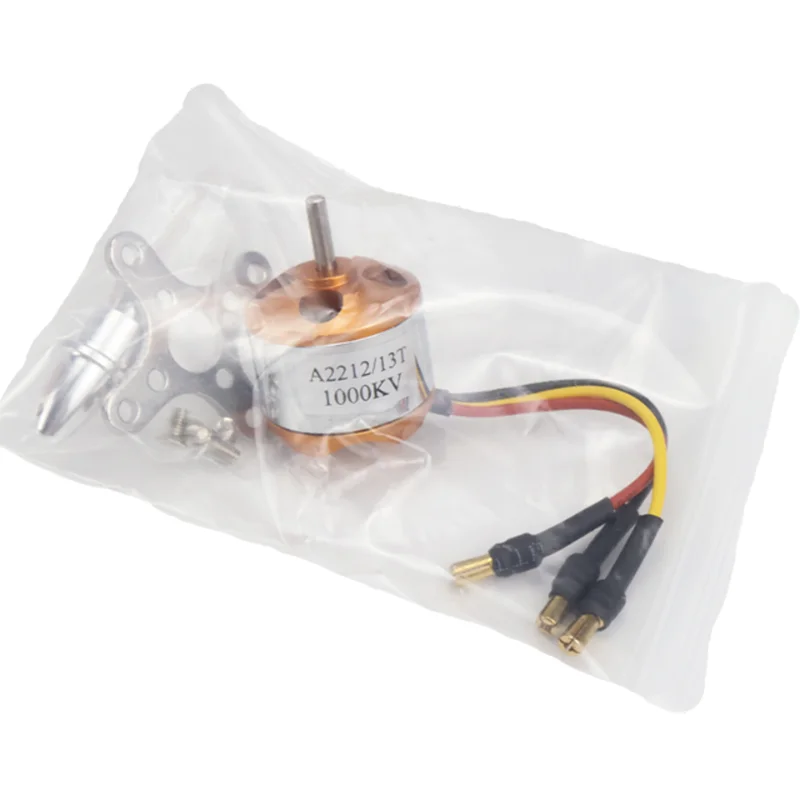

⚙️ A2212 1000KV Motor:

• KV Rating: 1000
• Max Efficiency: 80%
• Max Efficiency Current: 4-10A (>75%)
• Current Capacity: 12A (60s)
• No Load Current @ 10V: 0.5A
• Cell Compatibility: 2-3 Li-Poly
• Motor Dimensions: 27.5 x 27mm
• Shaft Diameter: 3.17mm
• Weight: 48g

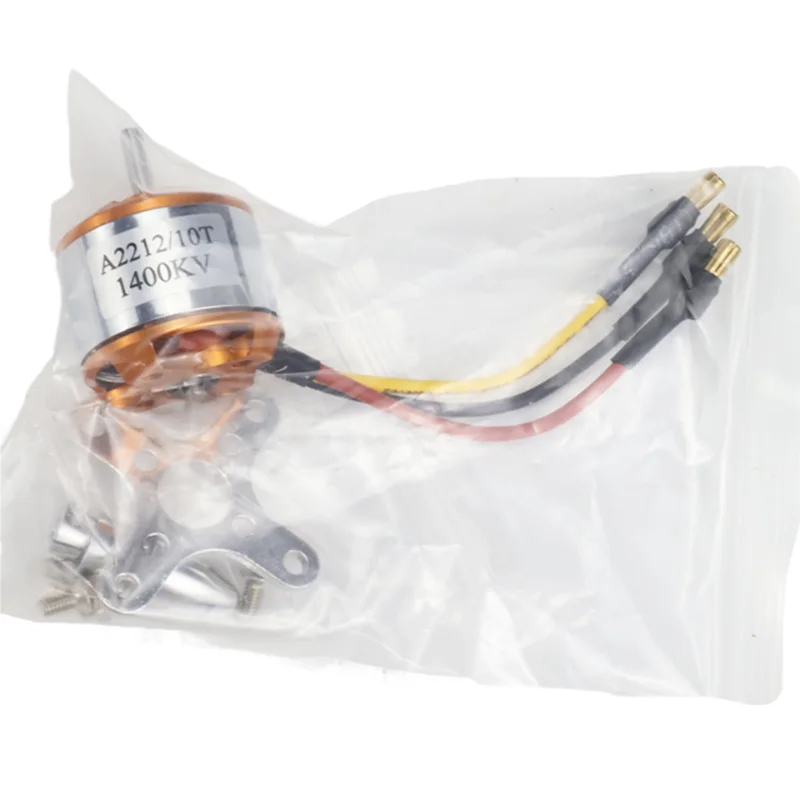

⚙️ A2212 1400KV Motor:

• KV Rating: 1400
• Shaft Diameter: 3.17mm
• Motor Dimensions: 27.8 x 27mm
• Recommended Propeller: 2-cell 7x3.5, 3-cell 6x3
• Weight: 48g

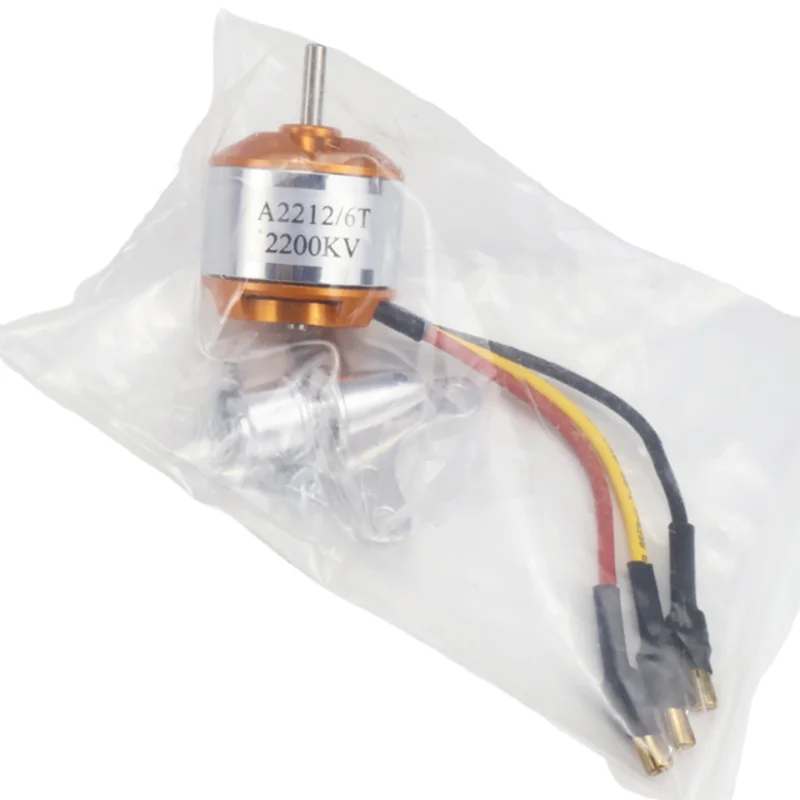

🌿 A2212 2200KV Motor:

• KV Rating: 2200
• Max Efficiency: 80%
• Max Efficiency Current: 4-10A (>75%)
• Current Capacity: 12A (60s)
• No Load Current @ 10V: 0.5A
• Cell Compatibility: 2-3 Li-Poly
• Motor Dimensions: Φ27.5 x 30mm
• Shaft Diameter: Φ3.17mm
• Weight: 47g

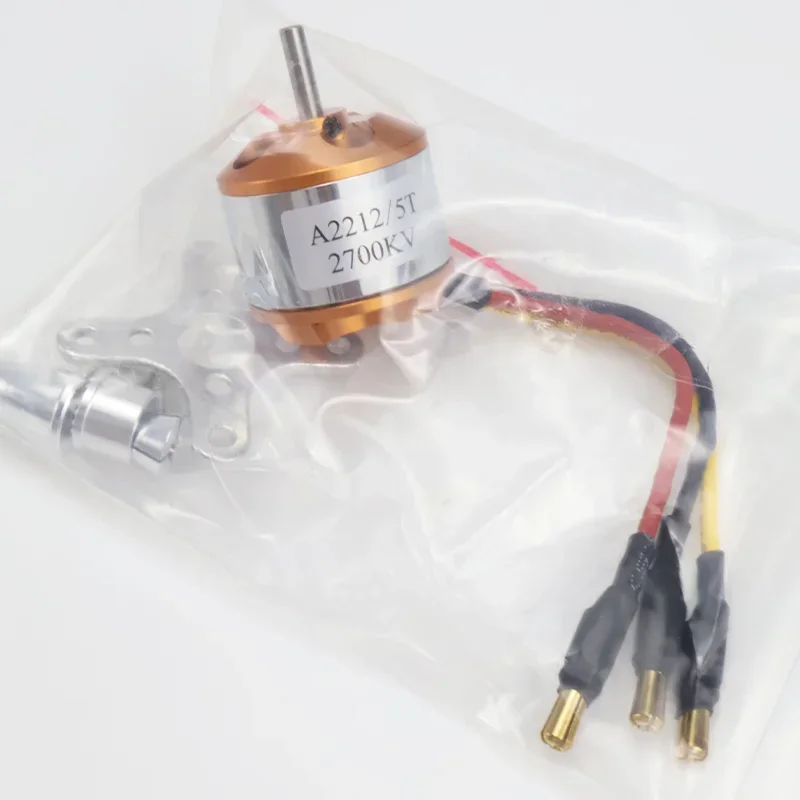

⚙️ A2212 2700KV Motor:

• KV Rating: 2700
• Net Weight: 50g
• Motor Dimensions: 27 x 26mm
• Battery Compatibility: 2-3 Li-Po
• Idle Current: 1.8A
• Load Current: 18.5A
• Power Output: 240W
• Recommended ESC: 30A or 20A
• Peak Amps: 14-22A

🧈 Experience the performance and efficiency of the XXD A2212 series motors, designed to meet the demands of your RC aircraft, whether it’s a multi-copter or fixed-wing plane. Each motor is built for reliability, providing you with a smooth and powerful performance on your next flight.
