High - Power Three - Phase DC Brushless Motor Controller with PWM and Hall Sensors (Dual Capacitors)

⚡ Product Overview:

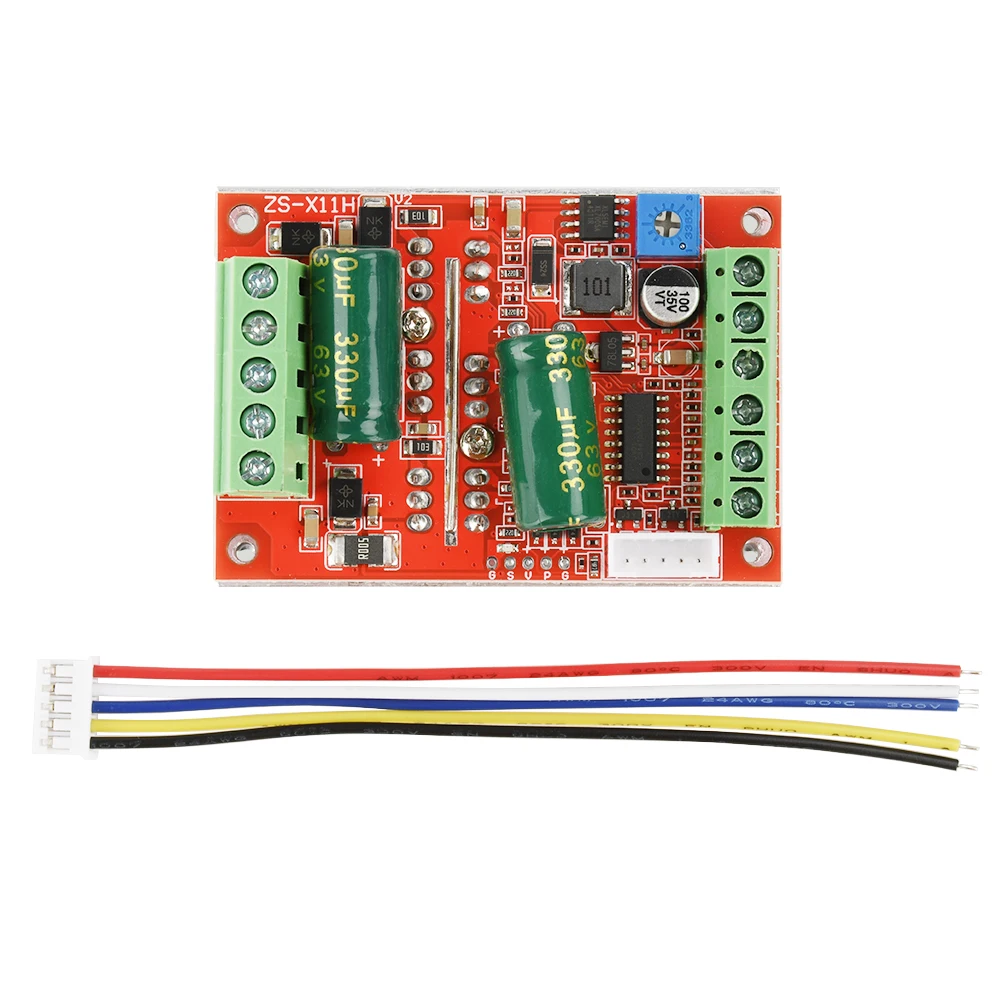

The ZS-X11H DC Motor Controller is an advanced drive board designed specifically for three-phase DC brushless motors equipped with Hall sensors. This controller operates over a broad voltage range of 6-60V and delivers impressive power up to 400W, making it ideal for high-performance applications requiring reliable motor control. With an integrated design that supports both PWM (Pulse Width Modulation) and PLC (Programmable Logic Controller) input, this controller offers flexible operation suitable for a variety of projects.

🔧 Key Features:

• This controller is purpose-built for three-phase DC brushless motors featuring Hall effect sensors, ensuring seamless and efficient system performance.
• It is exclusively designed for motors with a 120-degree electrical angle, providing precise control over motor functions.
• Its upgraded wide voltage input capability and high-power output make it a versatile choice for different applications.
• Supports analog control via PLC with input ranging from 0-5V, allowing for easy integration into existing systems.
• The PWM control amplitude is compatible with signals between 2.5V and 5V, accommodating a variety of control setups.

🛠️ Technical Parameters:

• Phase Line Outputs: Connects to the motor through designated outputs: MA, MB, and MC.
• Power Supply: Comes with a built-in 5V power supply for the motherboard, supporting a maximum current draw of 50mA.
• Main Power Input: Requires an external DC power supply connected to VCC and GND terminals.
• Control Interfaces: Includes several control interfaces for speed, direction, and braking, providing robust control options.
• Integrated Hall Sensor Support: Provides dedicated input for Hall sensor signals, typically consisting of five wires for optimal connectivity.

🎯 Performance and Reliability:
The ZS-X11H has undergone a meticulous patch process upgrade that enhances overall stability and performance. Enjoy the benefits of forward and reverse operation, as well as effective braking control. The integrated speed regulation system allows for precise adjustments, streamlining the process of achieving desired motor speeds and ensuring reliable operation in various scenarios.

💍 Setup and Debugging Instructions:

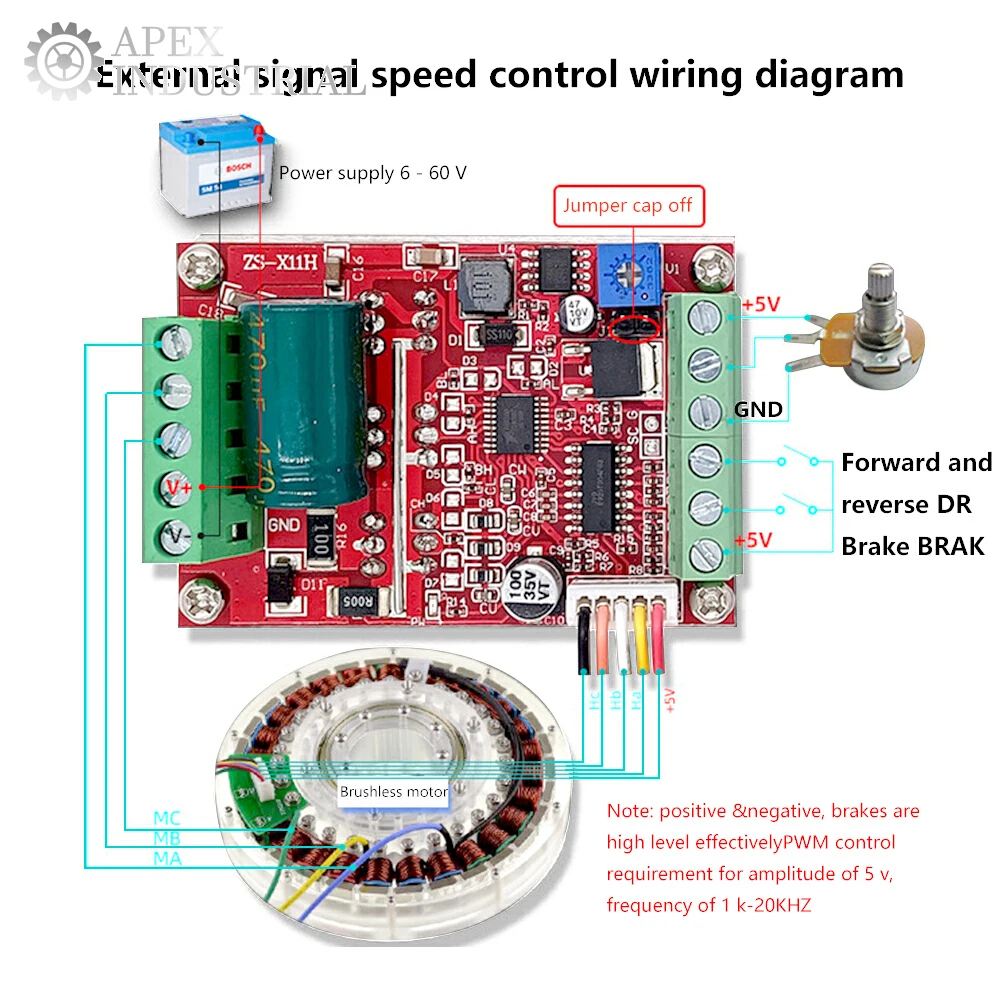

Proper installation is crucial for optimal functionality. Before powering on the unit, confirm all connections are appropriate and match the specifications of your motor. Notably, ensure the five Hall connections are correctly identified. Investigation into incorrect wiring is essential, as it can lead to erratic motor behavior. Under low-voltage conditions, it is advisable to systematically swap the Hall signal wires to find a configuration that allows smooth motor operation.

👌 Human Factors Design:
The controller features a user-friendly design with standard terminals for easy connections and effective heat dissipation fins to maintain optimal operating temperatures. An integrated speed-regulating potentiometer on the board simplifies control for users, enabling quick adjustments and reductions in troubleshooting time.

Specifications:

• Product Name: 400W Brushless Hall DC Motor Driver
• Model: ZS-X11H V1
• Working Voltage: 6-60V
• Maximum Current: Rated 16A, Peak 20A
• Maximum Power: 400W
• Overcurrent Protection: Present
• Dimensions: 63mm long x 45mm wide x 31mm high
• Weight: Approximately 77g

🛡️ In the Package:
1 x ZS-X11H Controller Module
1 x Connection Cable
