Compact I2S Class D Audio Amplifier Module - 3.2W Digital Input (1Pcs - 98357 weldi)

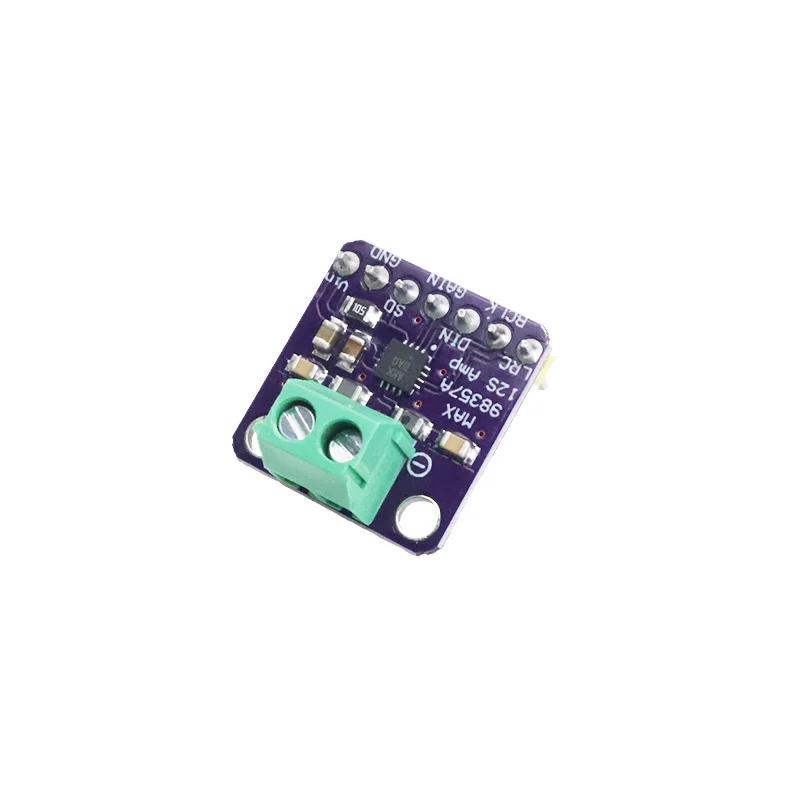

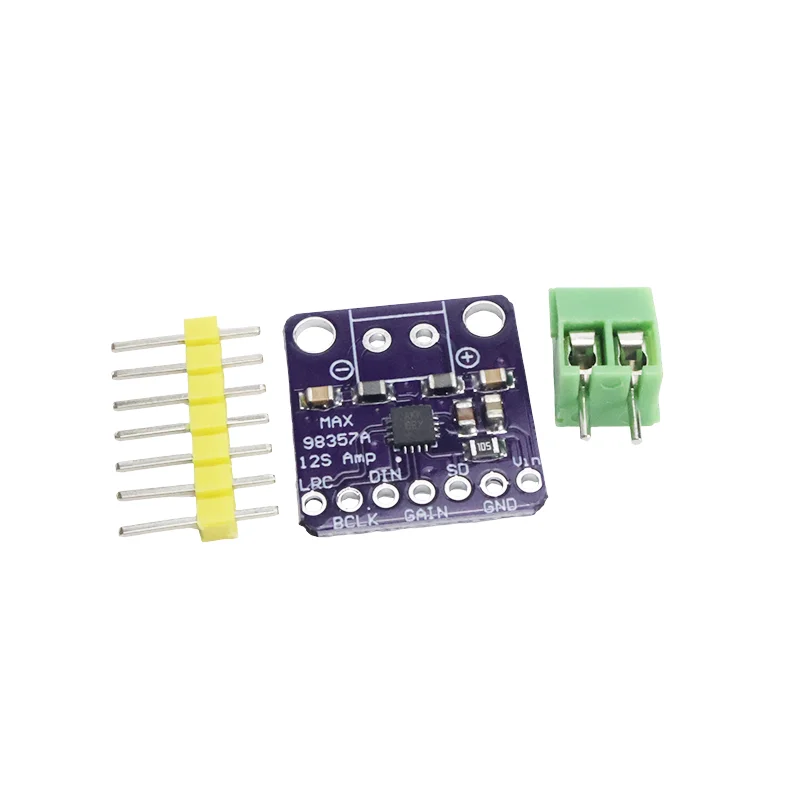

Introducing the MAX98357 I2S Class D Audio Amplifier Module

📦 The MAX98357 I2S Class D Audio Amplifier Module is a powerful and versatile solution for audiophiles and DIY enthusiasts looking to enhance their audio projects. Designed by Maxim, this compact amplifier offers remarkable sound quality and high efficiency, making it an exceptional choice for a wide array of applications.

🧩 With an impressive output power of 3.2W at 4Ω with 10% Total Harmonic Distortion (THD) and 1.8W at 8Ω, the MAX98357 provides a rich and immersive audio experience reminiscent of Class AB amplifiers, all while maintaining the energy efficiency characteristic of Class D designs. This is particularly beneficial for mobile and battery-powered applications where conserving energy is paramount.

⚡ The amplifier supports both Pulse Code Modulation (PCM) and Pulse Density Modulation (PDM) inputs, allowing for seamless integration with various digital audio formats. It features a flexible pin arrangement that significantly reduces the number of external components typically required by analog amplifiers. This streamlined design not only saves space but also simplifies the overall system architecture.

🧲 This module is engineered for high performance, featuring excellent noise immunity and jitter tolerance—at least 8dB better than many competing solutions. This ensures high-fidelity sound quality even in challenging environments. The MAX98357 also excels in electromagnetic interference (EMI) suppression, further enhancing its audio clarity and reliability.

⚡ Another standout feature of this amplifier is its ability to support long speaker wire runs without the need for additional external filtering, thanks to its robust design. The amp operates efficiently across a wide voltage range of 2.5V to 5.5V, making it compatible with popular platforms such as Raspberry Pi, Arduino, and ESP32, providing a straightforward plug-and-play experience.

🔧 Key Features:

• Output power: 3.2W at 4Ω; 1.8W at 8Ω with 10% THD
• I2S sampling rates: 8kHz to 96kHz
• Adjustable Class D amplifier gain options: 3dB, 6dB, 9dB, 12dB, and 15dB
• Plug and play capability with automatic configuration of 35 different clocks and 128 digital audio formats

⚙️ The MAX98357 is an excellent choice for those looking to elevate their audio projects to new heights, combining exceptional sound quality with high efficiency and ease of integration. Whether you are a hobbyist or a seasoned developer, this module is designed to meet your audio amplification needs with minimal effort.
