High - Power DC 50V Amplifier Rectifier Filter Board (10A)

Enhanced Rectifier Filter Board for DC 50V Power Amplifiers

📦 This advanced Rectifier Filter Board is specifically designed to provide superior performance for high power amplifiers and various DC power applications. Its compact and sleek design combines functionality with reliability, making it an ideal choice for audiophiles, engineers, and hobbyists alike.

🔧 Key Features:

• Small and exquisite form factor, allowing for easy integration into existing systems.
• Reliable performance ensures your DC power supply operates smoothly and efficiently.
• Low power consumption, contributing to system longevity and energy efficiency.
• Versatile application range, suitable for a variety of high power amplification needs.
• Optimized design featuring the shortest high current transmission lines to minimize voltage drop and enhance efficiency.

💥 Technical Overview:

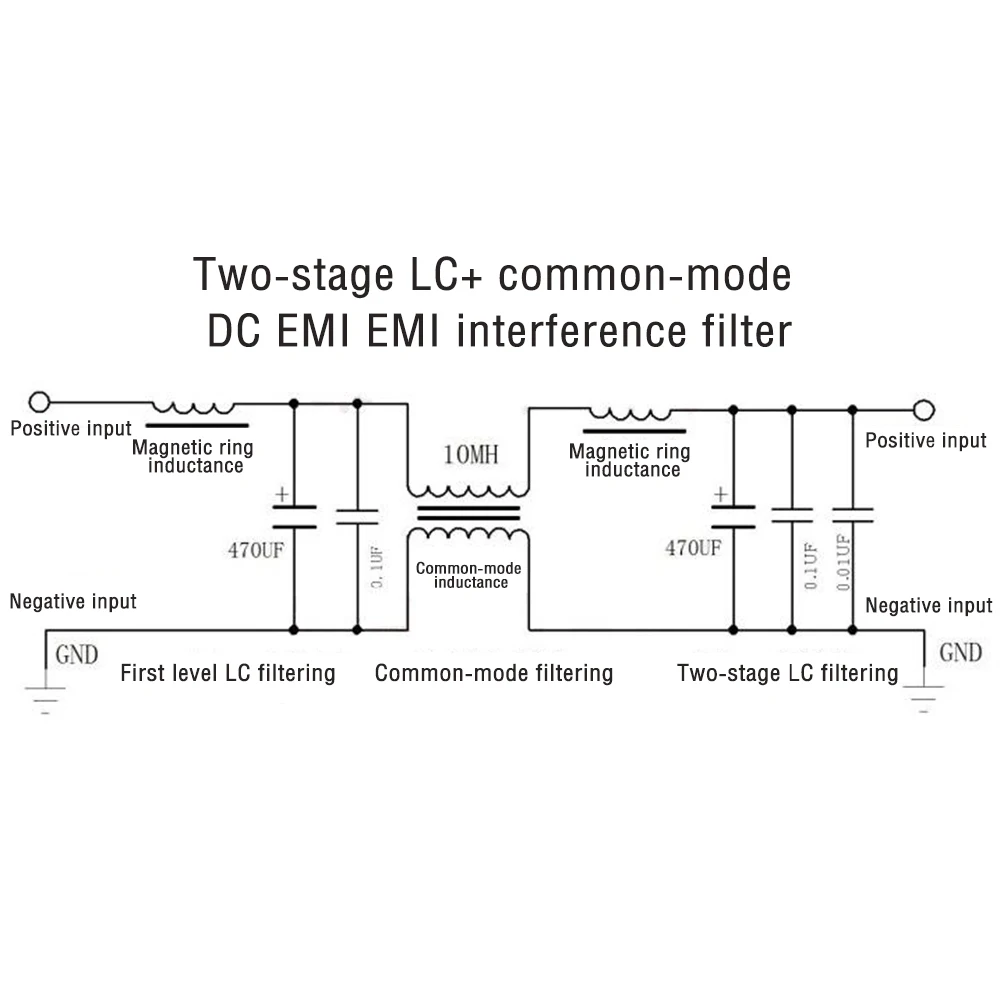

🧲 The filter circuit consists of three integral components designed to refine and purify your DC power supply. The first segment features a primary LC filter circuit that serves to eliminate unwanted harmonics, enhancing the quality of the DC output. The second component is a common mode EMI filter, specifically engineered to mitigate rapid transient group pulse interference, particularly in environments prone to electromagnetic disturbances. Lastly, a secondary LC filter circuit further polishes the power output for clean and stable DC supply.

💍 LC filters, recognized as passive filters, employ a combination of inductive and capacitive elements to effectively compensate for harmonics, ensuring a pristine power source. This versatility allows for optimal functionality across various demanding applications.

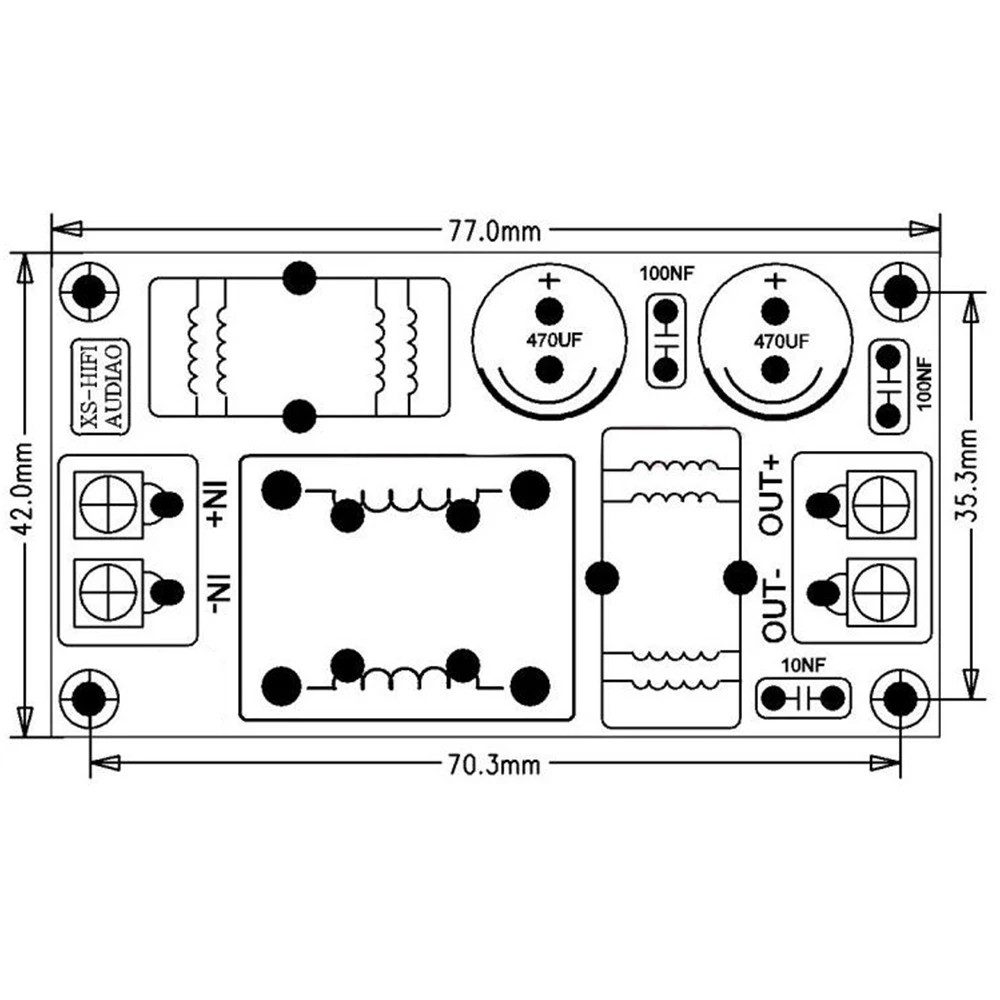

🪞 The board is crafted from high-quality FR4 fiberglass material, measuring 42X77X1.6MM, designed to withstand the rigors of high current applications. Its layout minimizes transmission path length, which is crucial for maintaining signal integrity and reducing external interference.

Inductor Specifications:

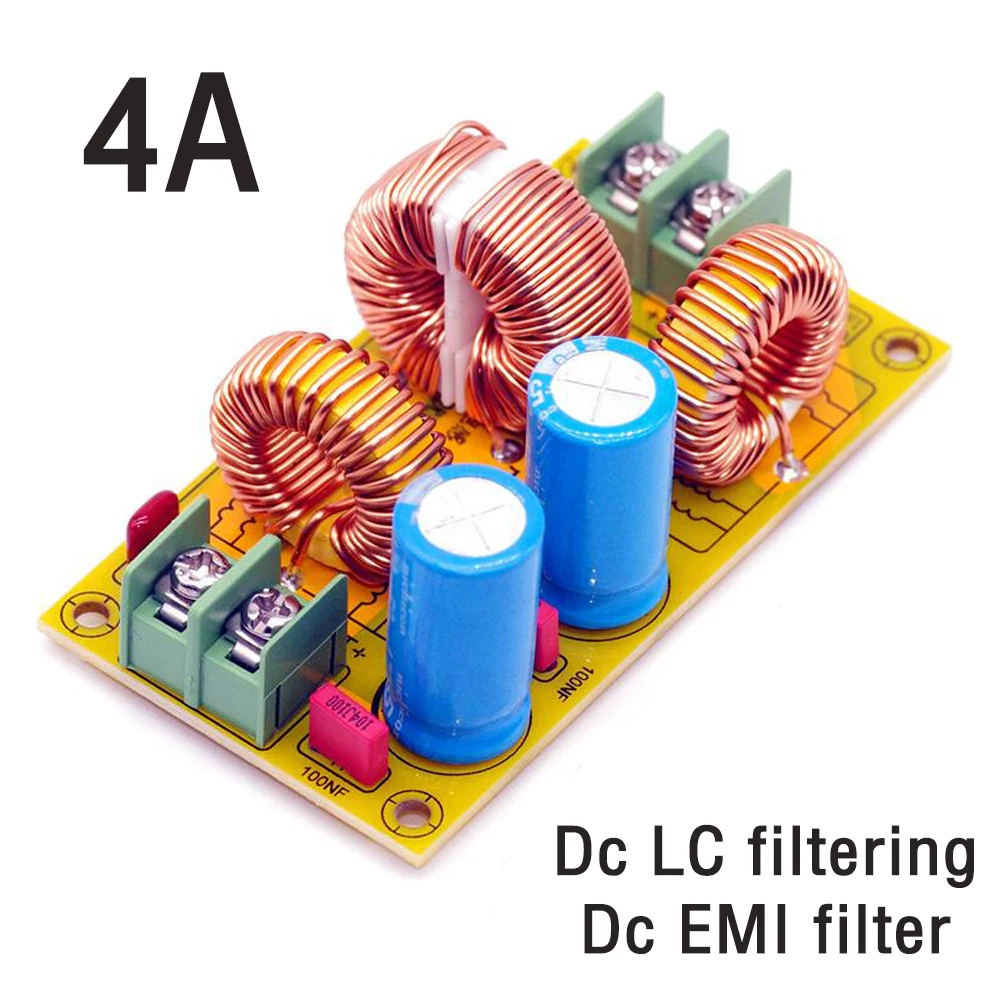

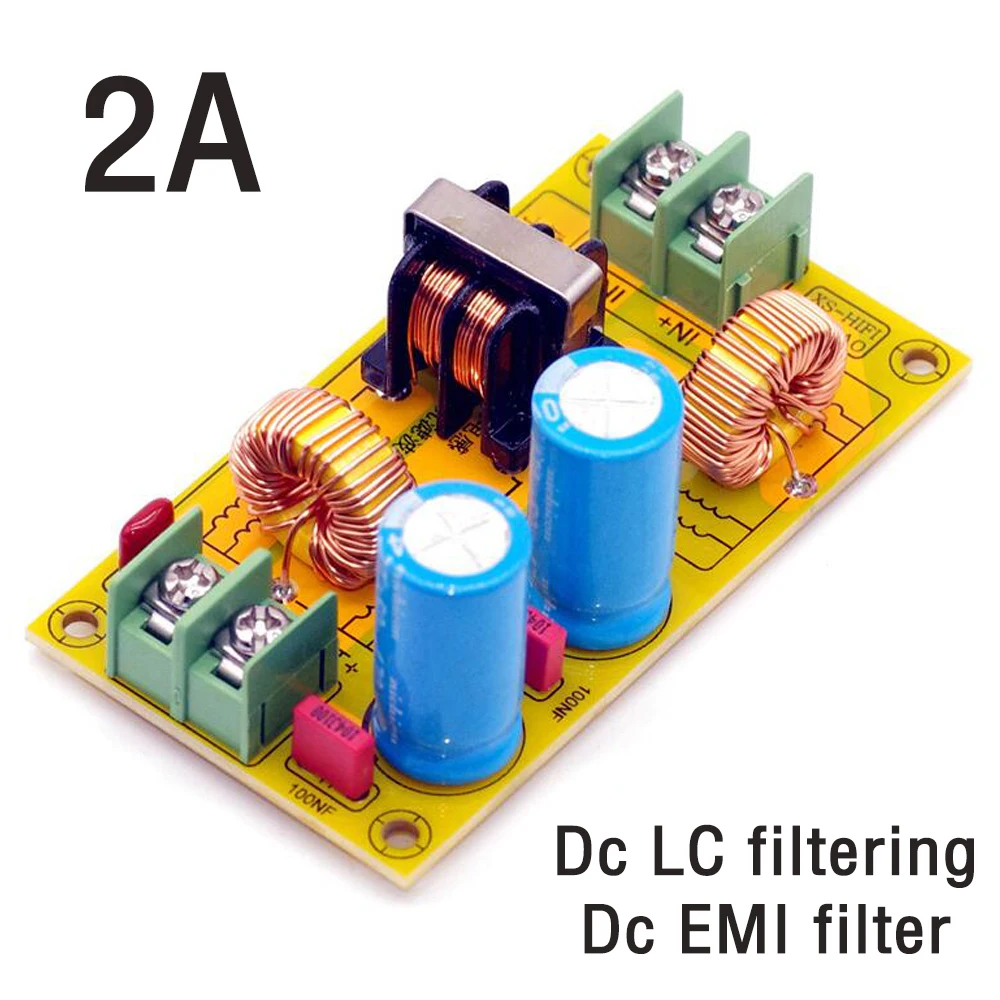

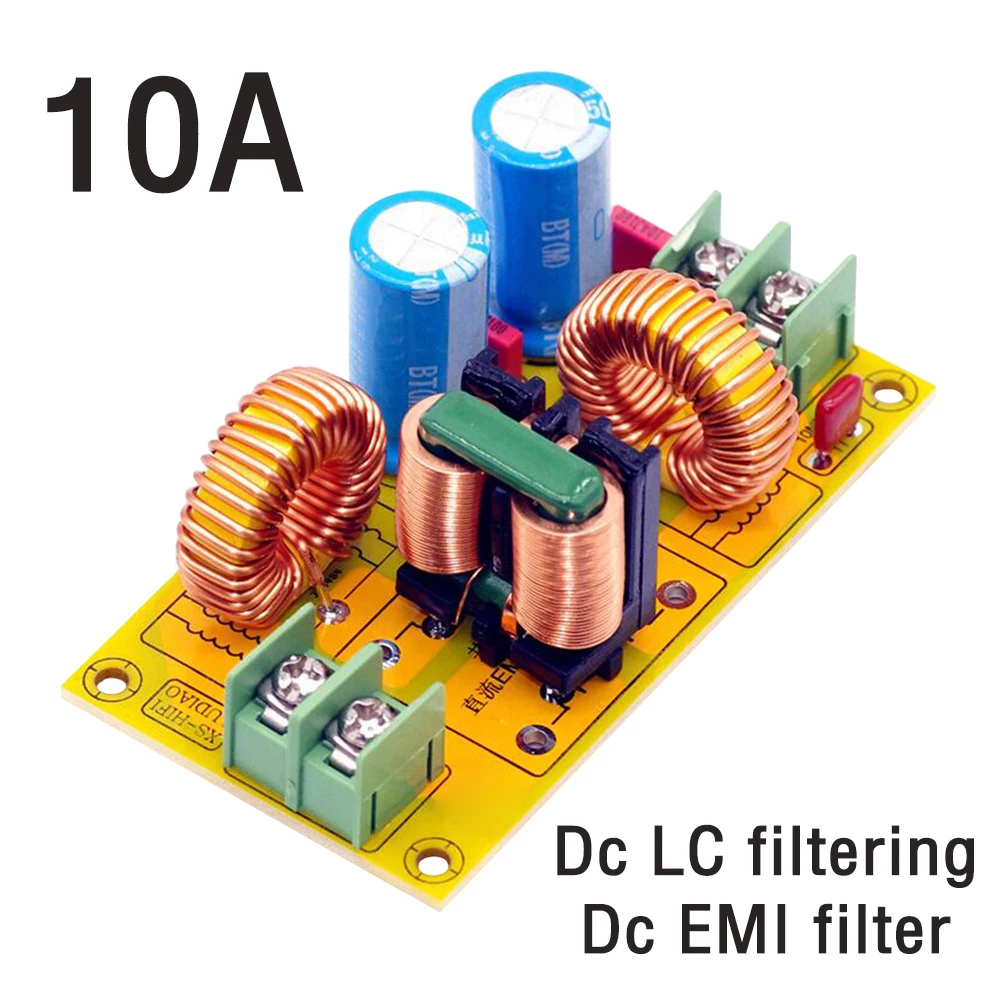

🎯 The board is outfitted with inductors available in four current ratings: 2A, 4A, 10A, and 20A, allowing you to select the appropriate specification based on your specific needs and application requirements.

Components Breakdown:

• Double-sided FR4 fiberglass PCB for durability and reliable performance.
• Two 50V 470μF electrolytic capacitors to stabilize voltage.
• Two 100nF thin film capacitors and one 470pF thin film capacitor for enhanced filtering.
• Two magnetic ring inductors, optimized for high currents, constructed from quality iron-silicon-aluminum alloy for optimal performance.
• One common mode inductor, featuring flat copper configuration rated for 20A.
• Quality 7.62 sockets, including 2-pin and 3-pin configurations for versatile connectivity.

🪞 This module is particularly effective in suppressing electromagnetic interference from DC power sources, making it an invaluable tool for automotive, motorcycle, and other industry applications that demand robust and reliable power supply solutions.

📦 Included in Package:

• Filter Board x1
