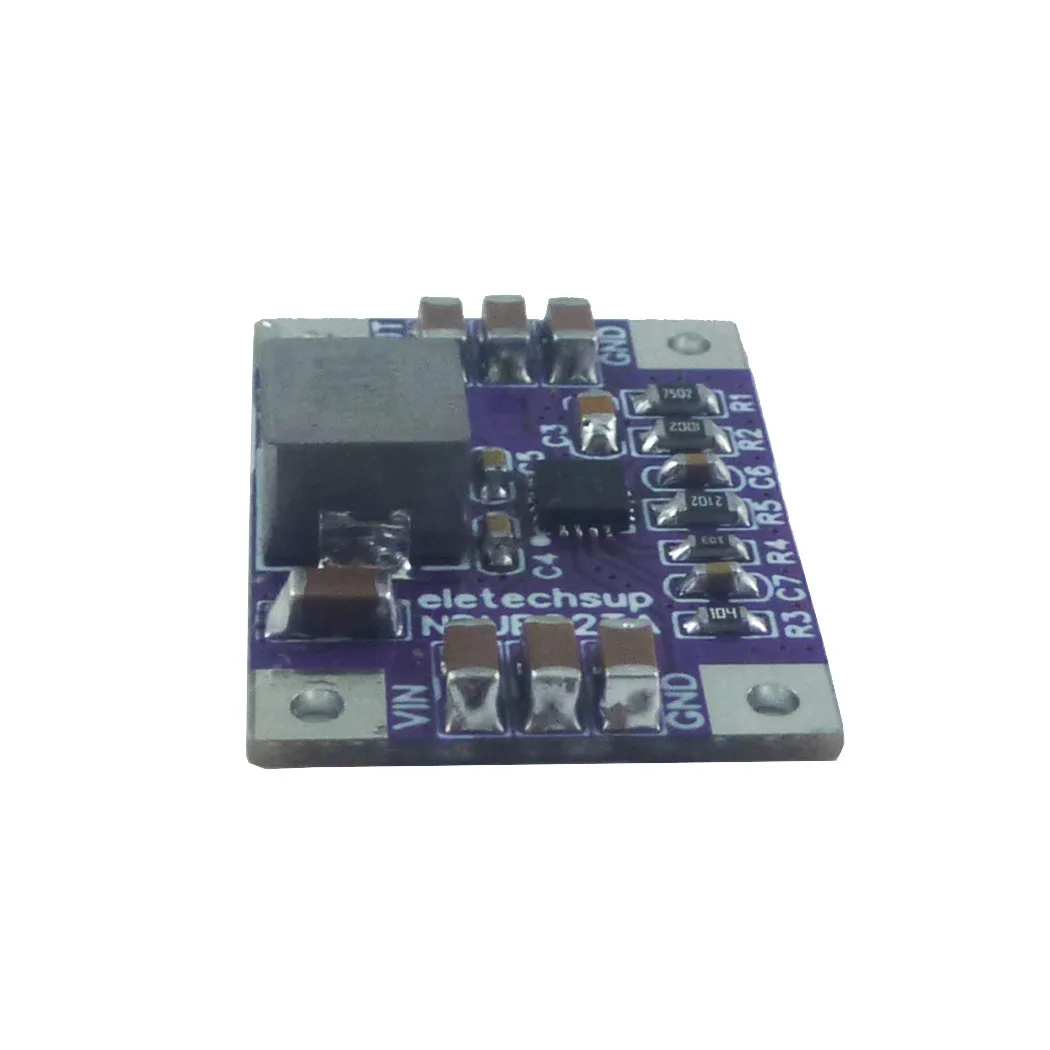

High - Efficiency Multi - Voltage DC - DC Buck - Boost Converter Module (10V)

⚙️ Product Name: Max 3A Synchronous 4-Switch High Efficiency DC-DC Buck-Boost Converter Module

Description:

🏆 Experience the cutting-edge technology of the Max 3A Synchronous 4-Switch High Efficiency DC-DC Buck-Boost Converter Module, a highly versatile voltage regulator designed to efficiently convert input voltages ranging from 3V to 23V into stable output voltages of 3.3V, 4.2V, 5V, 6V, 10V, or 12V. This module is perfect for applications that require reliable power conversion with excellent performance.

🏆 High Performance:
With a maximum output current of 3A and a significant input current capability of up to 4A, this converter promises optimal performance for a variety of applications. However, do keep in mind that maximum output current can depend on specific input voltages, so please refer to the parameters provided.

📦 Operating Frequency:
The module operates at a high-frequency rate of 500KHz, contributing to its efficiency and compact design.

🏆 Efficiency:
This converter is engineered for high efficiency, boasting conversion rates of 88-93%, significantly outperforming standard buck-boost converters that typically operate at 50-70%. This means less wasted energy and improved performance in your applications.

🪶 Robust Operating Range:
Built to sustain extreme conditions, this module operates seamlessly within a temperature range of –40°C to +105°C, making it suitable for a wide variety of environments.

🕊️ Compact Design:
Its small footprint of 25mm x 18mm x 6.5mm and lightweight design (approximately 3g) make it an ideal choice for projects with limited space and weight considerations, such as portable and compact electronic devices.

🧩 Safety Features:
This module incorporates full protection features to ensure safe operation, including:

• Under-voltage Protection (UVP)
• Internal Soft Start (SS)
• Over-Current Protection (OCP)
• Output Short-Circuit Protection (SCP)
• Over-Temperature Warning and Shutdown

🪶 Applications:
This versatile converter module is suited for a wide range of applications, including:

• 15V to 3.7V/4.2V lithium battery-powered systems
• WIFI modules such as ESP8266 and ESP32
• CCTV PTZ Cameras
• Smart Home and Home Automation Systems
• Distributed Power Systems
• Battery Chargers
• Pre-Regulator for Linear Regulators
• Solar Cell Voltage Regulators

📷 Note:
Please be aware that different input voltages correspond to varying output currents. For optimal performance, refer to the detailed parameter table to select the appropriate version that meets your specific needs.
