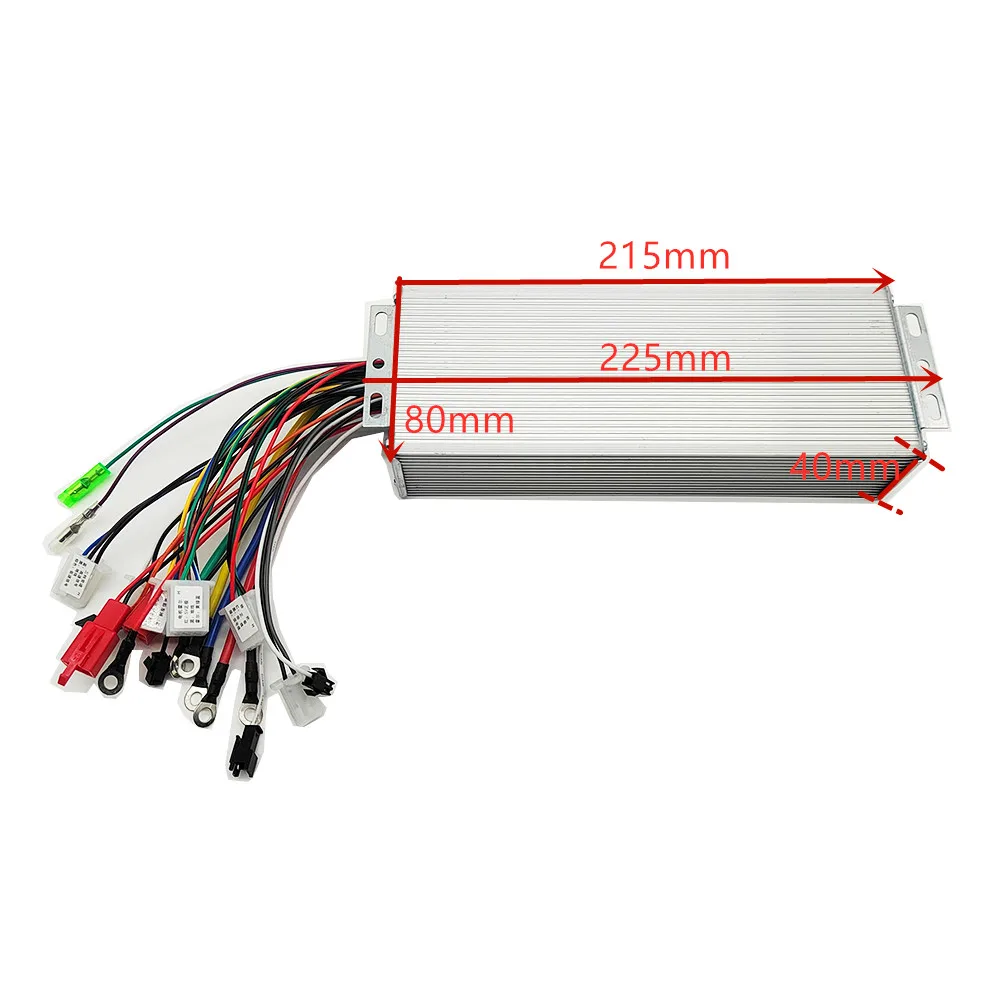

🏆 Introducing the 48V 60V 64V 1500W Electric Bike Brushless Controller, a high-performance controller designed to enhance your electric bicycle, scooter, or motorcycle experience. This powerful unit is compatible with both hall sensor and hall sensorless motors, making it versatile for various applications.
Key Specifications:
- Rated Voltage: 48V-64V
- Low Voltage: 42V ± 0.5V
- Rated Power: 1500W
- Limit Current: 45A
🔧 Advanced Features:
- Self-learning capabilities for easy voltage adaptation
- Smooth cruise control for uninterrupted rides
- Reverse function for convenient maneuvering
- High and low brake options to suit your riding style
- Three-speed settings (low, middle, high) for customized performance

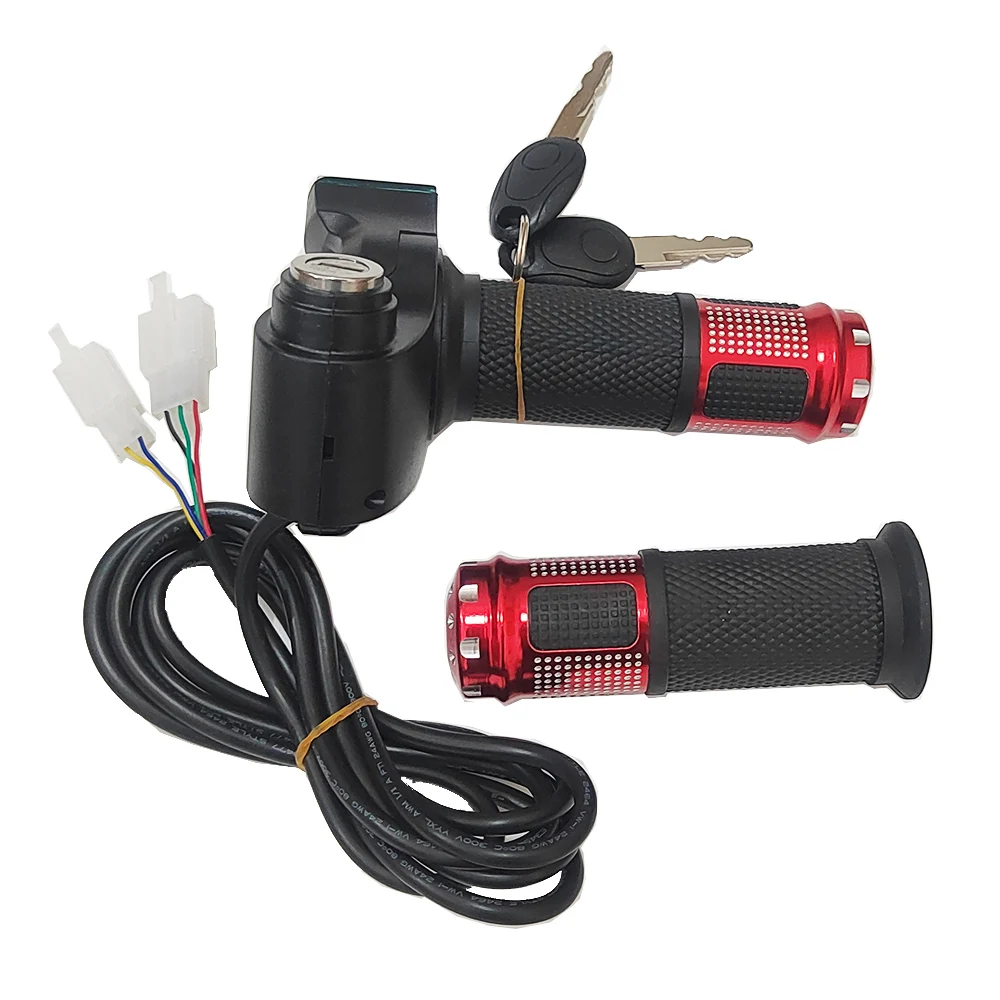

- Throttle control for precise acceleration
- Electric lock for added security
- Direct connections for hall sensor and LCD instruments
- Anti-theft power supply and signal to protect your investment

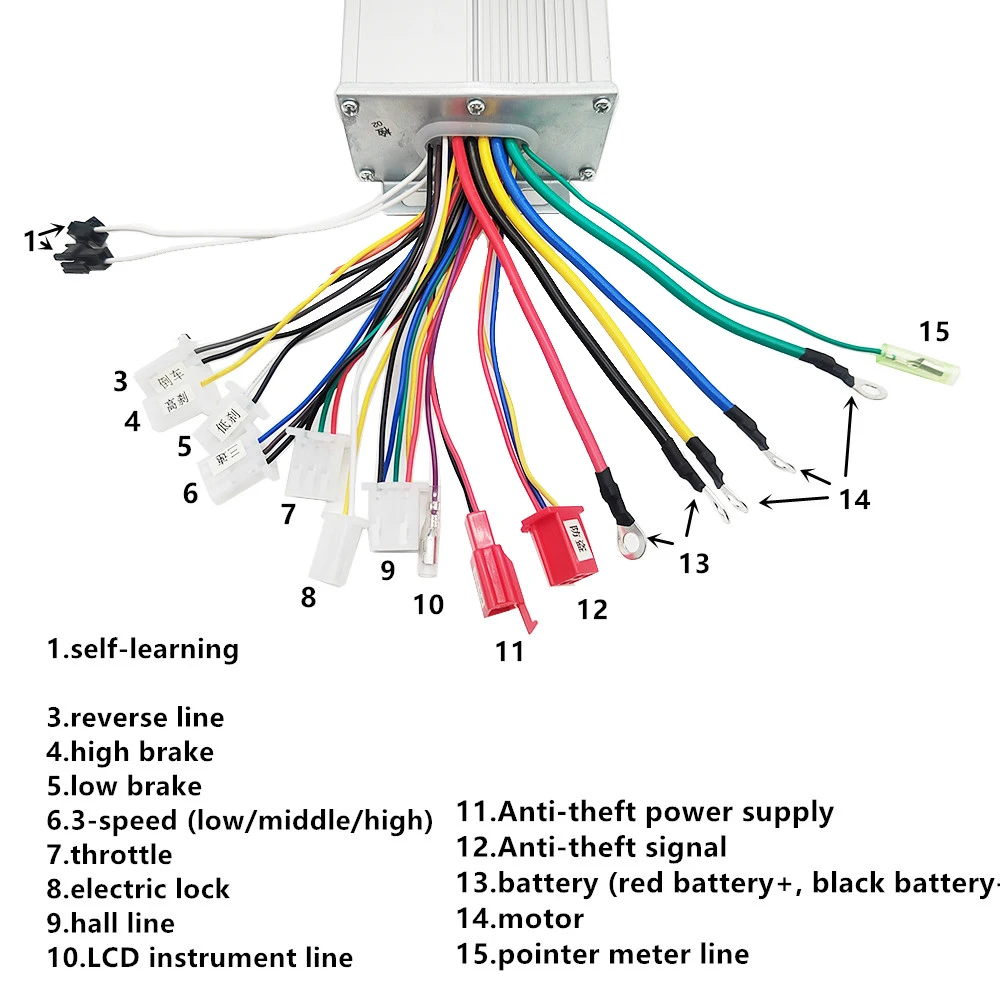

🧩 Connection Guide:
- Connect the motor wires by aligning colors. If your motor lacks a hall sensor, omit the hall connections.
- Connect the battery wires correctly: red to positive (+) and black to negative (-).

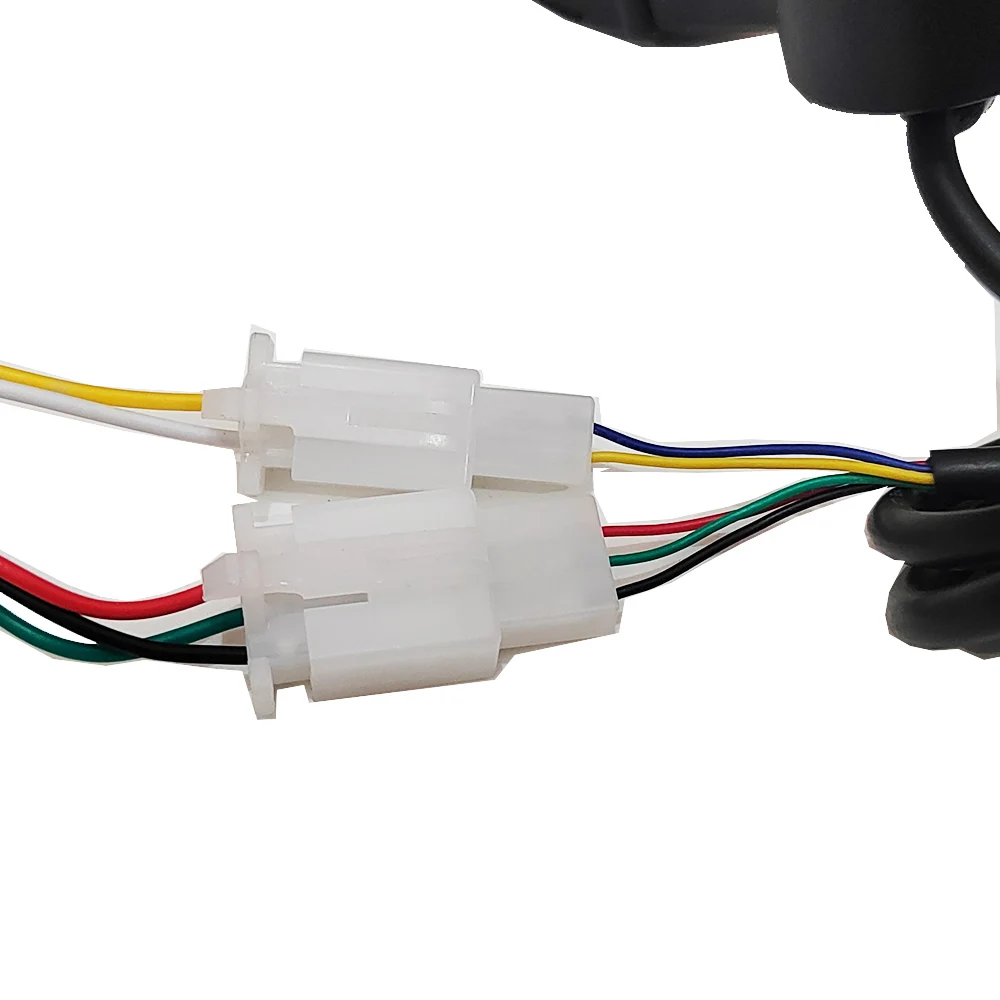

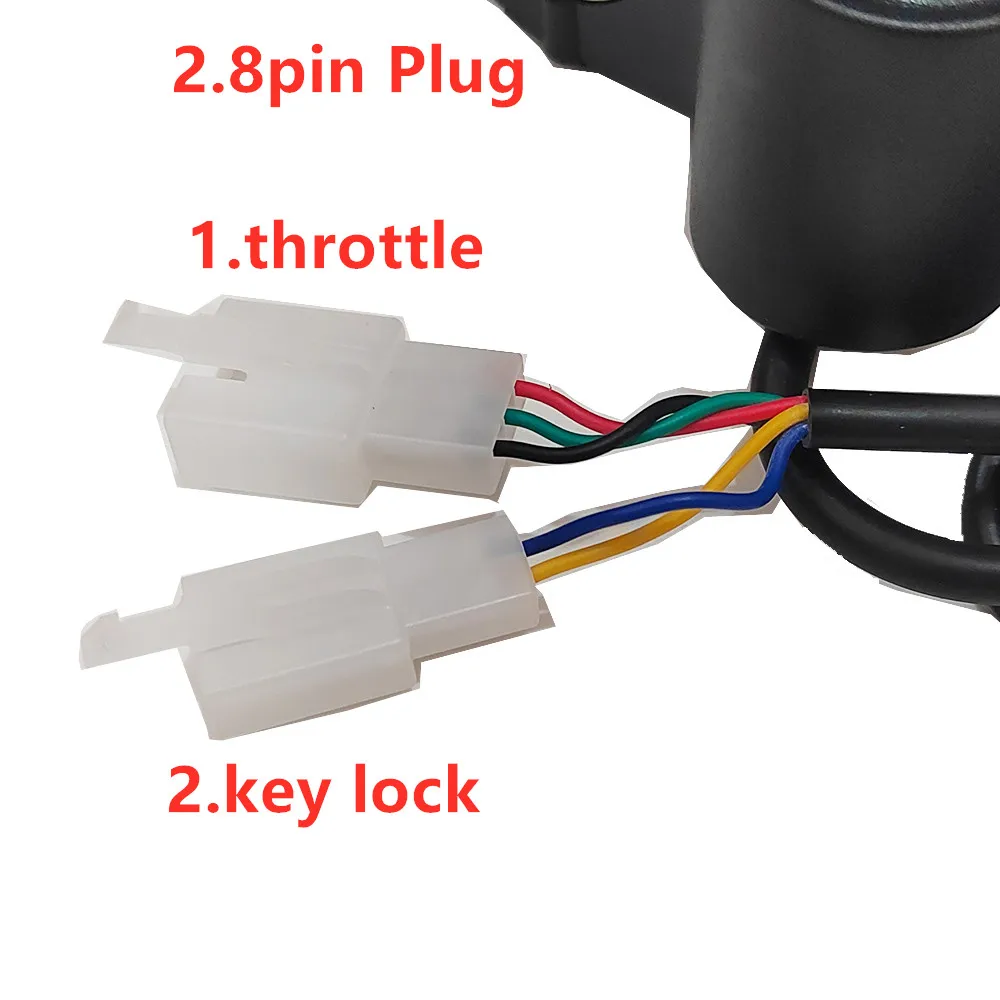

- Link the controller throttle wire to the throttle unit. If your throttle does not have an electric lock, the electric lock wires from the controller can be joined together.
- Attach the two self-learning wires. The wheel will either move forward or reverse based on this connection. To achieve the desired direction, you can easily separate the self-learning wire as needed.
- All other functions can be configured based on your specific needs.
💍 Elevate your electric ride with robust performance and innovative features of the 48V 60V 64V 1500W Electric Bike Brushless Controller, engineered to deliver a superior riding experience. Whether you're commuting or exploring, this controller provides the versatility and reliability you need.
