FM Bandpass Filter SMA BPF - LC RF Front - End (FM BPF)

88-108MHz FM Bandpass Filter SMA BPF - LC RF Front-End Filter for FM Transmitters, Receivers & Radio Broadcast Audio System

🪶 This high-performance LC bandpass filter is specifically engineered for applications within the FM broadcast band, covering frequencies from 88 MHz to 108 MHz. With a center frequency of 98 MHz, it excels in delivering superior signal fidelity in various communication systems, making it an essential component for anyone involved in radio broadcasting or transmission.

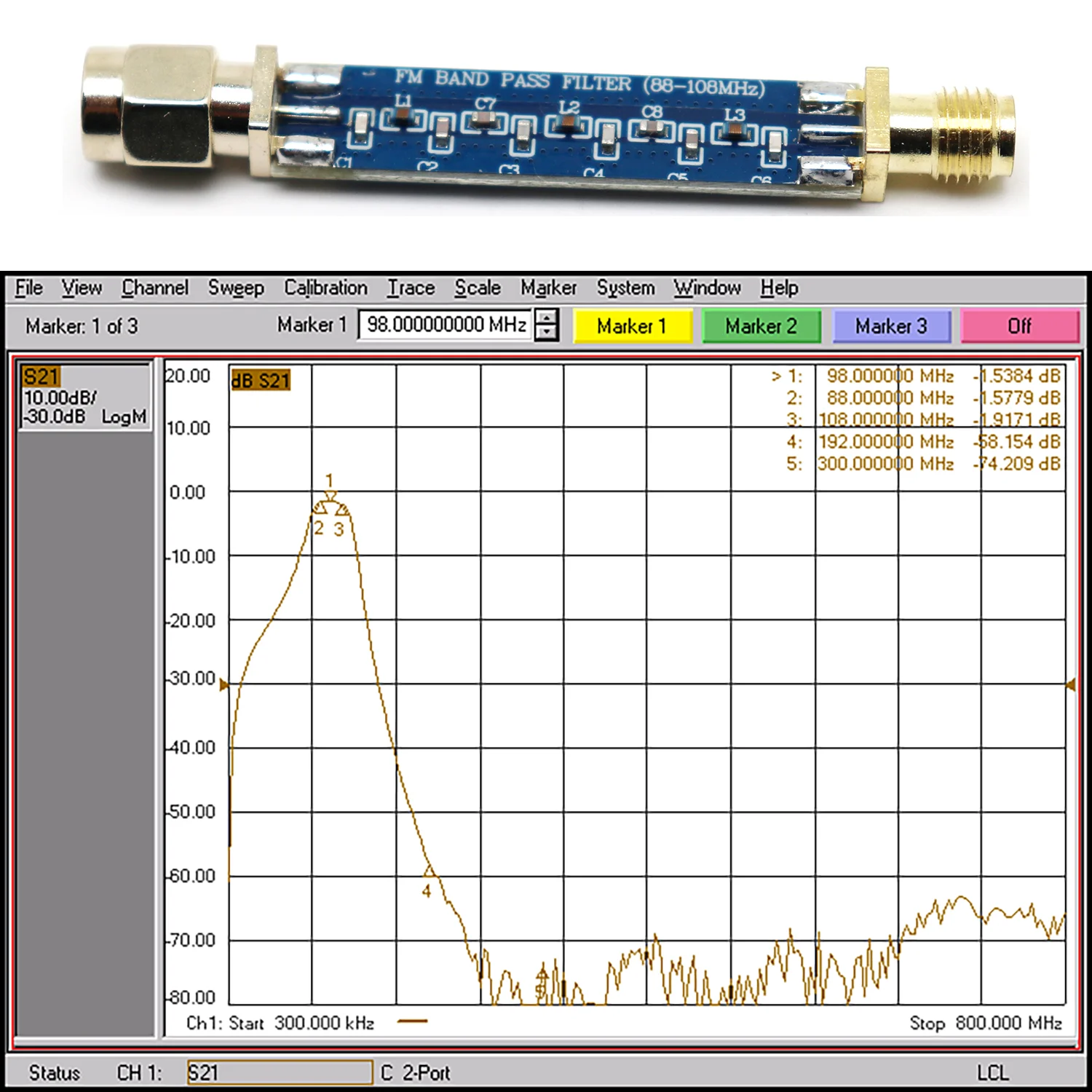

💍 One of the standout features of this filter is its remarkably low insertion loss of 1.6dB at the center frequency, ensuring minimal signal degradation. This means that your signal can pass through with optimal efficiency, enhancing the overall performance of your FM transmitters and receivers. Additionally, the filter boasts impressive out-of-band rejection capabilities, achieving greater than 58dB rejection at 192MHz, more than 60dB at 200MHz, and over 75dB at 300MHz, effectively suppressing unwanted signals and RF interference.

💍 Engineered for robust performance, the filter can manage up to 4W (36dBm) of RF power, making it suitable for a variety of demanding applications. Its sturdy construction is complemented by high-quality SMA connectors (SMA-JE and SMA-KE), ensuring reliable connectivity for both transmitting and receiving equipment.

Applications of this versatile filter include:

• Output filtering for FM broadcast transmitters
• Front-end band selection for receivers
• Suppression of RF interference within the FM band
• Laboratory testing and experimentation
• Integration into amateur radio (HAM) FM systems

🪶 Whether for professional broadcasting or personal hobbyist use, this 88-108MHz FM Bandpass Filter proves to be an invaluable asset, enhancing audio clarity and maintaining signal integrity across a broad range of applications.
