Introducing the T-503C Digital Temperature Controller
😎 This advanced DC 24V dual sensor thermostat is designed specifically for efficient operation with laser chillers and a wide range of cooling systems. Its intelligent regulation features ensure precise management of water temperature, providing an optimized solution for various applications such as industrial air conditioning, high-power chillers, and oil coolers.
🔧 Key Features:
- Laser Chiller Temperature Control: This system efficiently starts and stops the refrigeration compressor while controlling the refrigerant solenoid valve, thus achieving accurate water temperature regulation. It also includes a simultaneous room temperature adjustment mode for maximal efficiency.
- Dual Temperature Sensors: Equipped with two sensors, the T-503C allows for precise water temperature regulation alongside real-time room temperature monitoring. The measurement range spans from -40 to 99.9°C, with astounding display resolution of 0.1°C for precise readings.

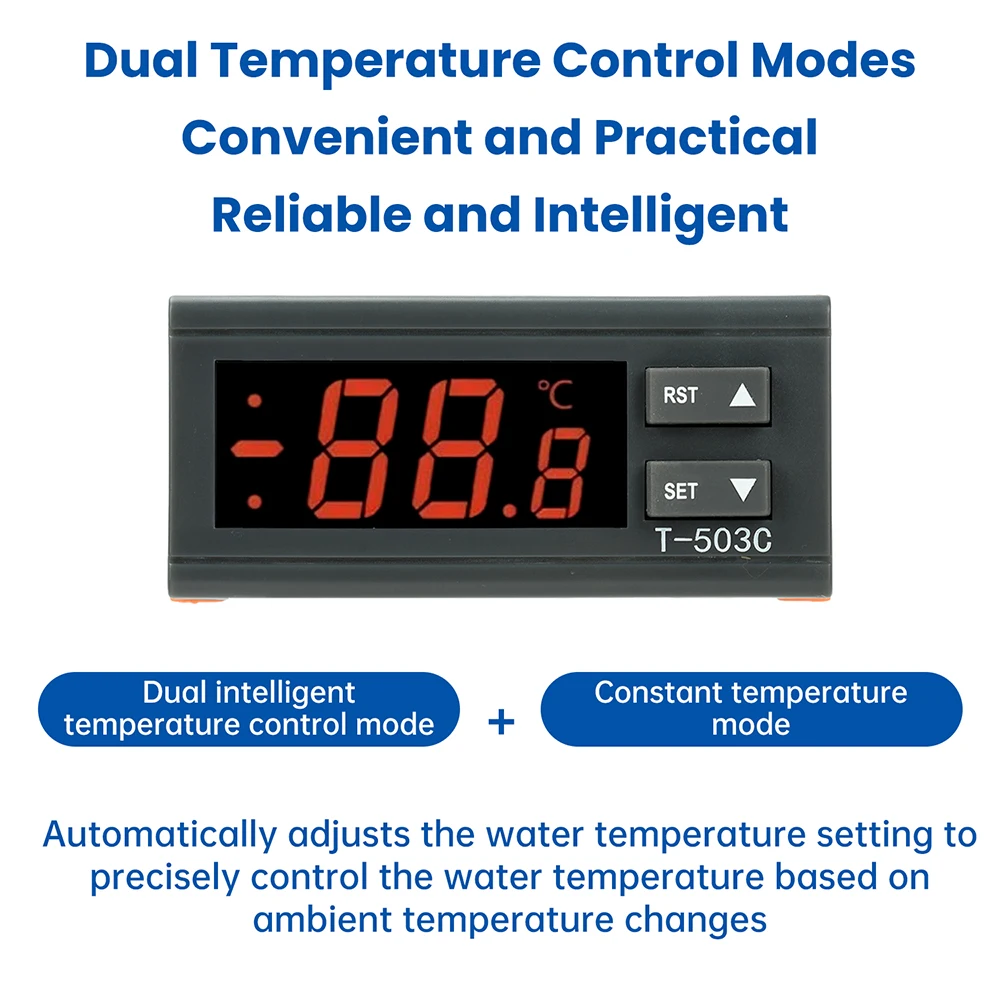

- Automatic Dual-Temperature Control: This feature dynamically adjusts the water temperature setpoints based on variations in ambient temperature, making the controller incredibly practical and user-friendly.
- Multi-Channel Control Outputs: The unit includes outputs specifically for compressor operation, solenoid valve activation, and fault alarm notifications. Its 24V power supply caters to diverse functionalities, making it suitable for a variety of applications.
- Versatile Applications: Ideal for use not only in laser chillers but also in other cooling systems such as oil coolers and industrial air conditioning units, the T-503C adapts seamlessly to various industrial contexts.
😎 Technical Specifications:
- Power Supply: DC 24V ±10%
- Total Power Consumption: <3W
- Measurement Range: -40 to 99.9°C
- Temperature Measurement Accuracy: ±1°C from -15 to 70°C; ±2°C outside this range
- Measurement Resolution: 0.1°C
- Sensor Fault Delay: 3 seconds
- Compressor Output Capacity: 16A/AC 220V
- Solenoid Valve Output Capacity: 5A/AC 220V
- Fault Alarm Output (NC/NO) Capacity: 5A/AC 220V
- Operating Ambient Temperature: -20~60℃
- Storage Temperature: -25~75℃
- Relative Humidity: 0~95% (non-condensing)
- Product Dimensions: 79 x 79 x 30 mm

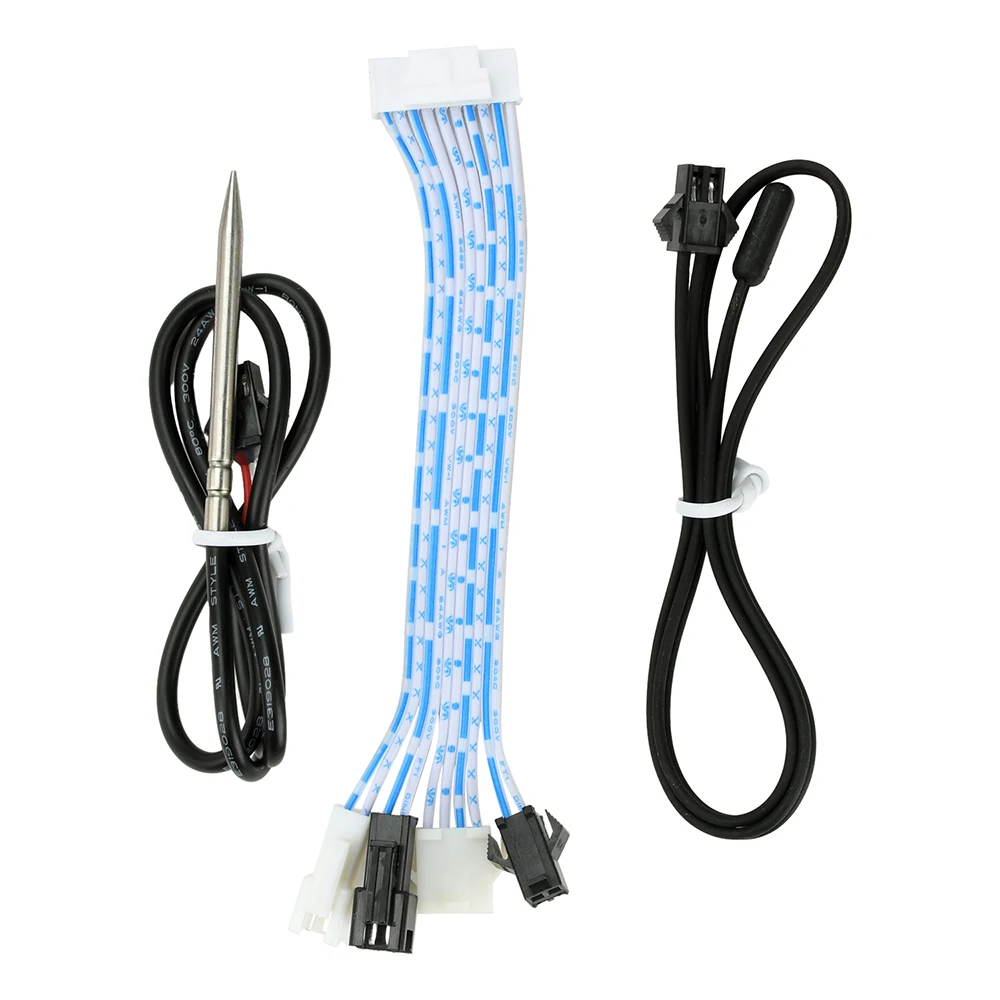

📦 Package Includes:
- Thermostat x1
- Flat cable x1
- Probes x2
😎 Experience precision temperature management with the T-503C Digital Temperature Controller, the perfect solution for your cooling needs.
