📦 Introducing the Mini Humidifier DIY Kit - the perfect solution for those looking to create their own compact and efficient humidification system. This kit is not only easy to assemble but also highly versatile, making it an ideal choice for a variety of environments.
🔧 Key Features:
- Flexible Power Supply: This device is designed to operate on a 9V battery, offering the convenience of mobility. You can use it in various settings, whether at home, in the office, or while traveling.
- User-Friendly Setup: The assembly process is straightforward. Simply install the cotton wand into the atomizer support, toggle the power switch, and watch as the unit begins to emit a fine mist upon contacting water.
- High-Performance Atomization: Equipped with advanced microporous atomization sheets, this humidifier delivers a delicate and uniform mist that effectively meets various humidity needs in different spaces.
- Energy Efficient: This kit operates on low power consumption, allowing for extended usage time. It’s designed to run efficiently over long periods, making it perfect for continuous use.
- Compact and Lightweight: Its small form factor allows for seamless integration into numerous devices or transport in any setting, making it both practical and easy to handle.
🕊️ Technical Specifications:
- Module Name: Single Spray Module
- Material: 1.2MMFR-4
- Supply Voltage: DC 9V
- Rated Current: 300mA
- Power Consumption: 1.5-2W
- Atomization Port: PH1.25
- Atomization Specifications:
- Name: Microporous Atomization Sheet
- Drive Voltage: 5V
- Resonant Frequency: 108-110KHz ± 5
- Rated Power: 2W
- Aperture Size: 4-5µm
- Number of Perforations: 800
- Silicone Sleeve Diameter: 20MM
- Rubber Ring Thickness: 3MM
- Steel Plate Diameter: 16MM
- Wire Length: 100MM
- Wire Terminal: PH1.25
⚡ How to Use:
- Begin by installing the atomizer bracket along with the cotton swab.
- Connect the atomizing plate to the designated port on the module.
- Next, plug the power supply into the module’s power port.
- Activate the device by pressing the power switch.
- Once the atomizer makes contact with water, it will begin to produce mist.

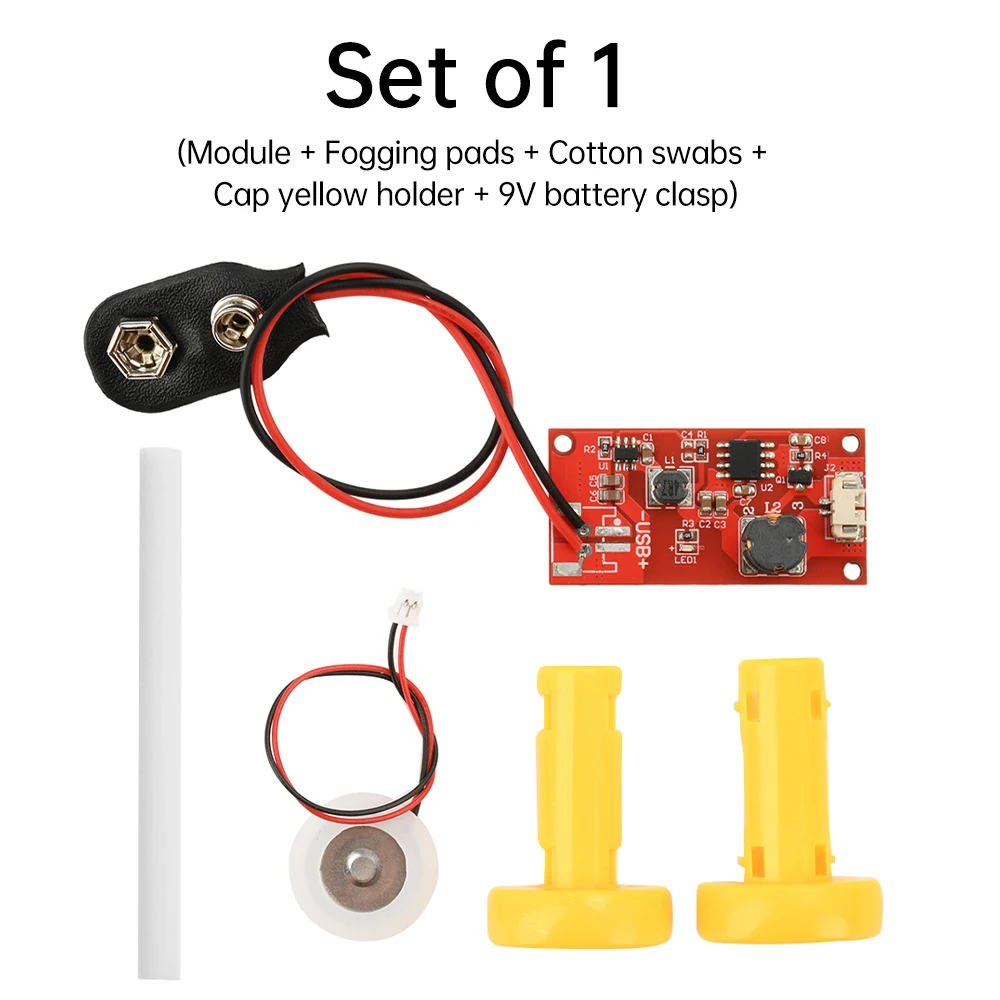

⚡ Package Includes:
- 1 x Atomizing Module
- 1 x Atomizing Sheet
- 1 x Yellow Bracket
- 1 x Cotton Swab
- 1 x 9V Battery Button (battery not included)
🔘 Please Note: Due to production variations, the colors of the terminals may be shipped randomly.
